Midland Industries 18185 Adapter 5/16 inches x 3/8 inches #68F Comxma

Product Description

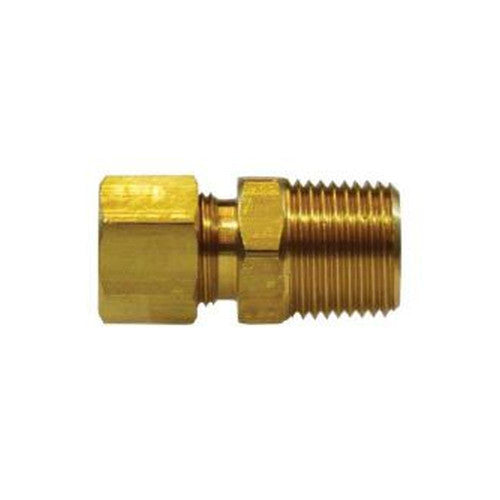

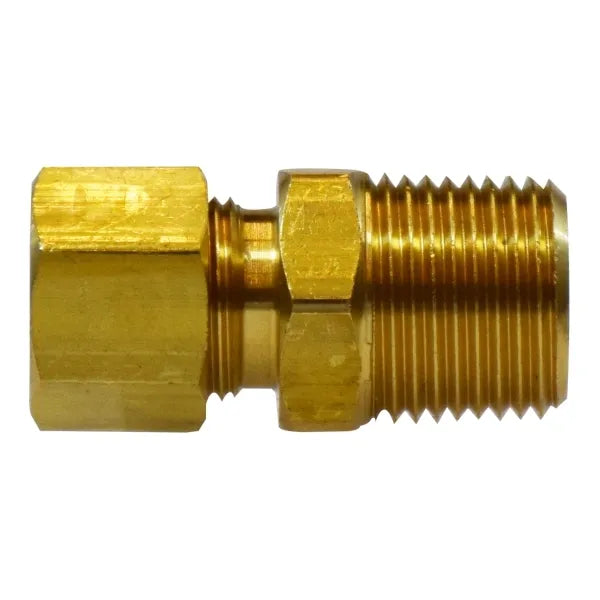

The MIDLAND INDUSTRIES 18185 adapter is a 5/16" compression x 3/8" male NPTF adapter made of brass. It is designed for use with copper, aluminum, and thermoplastic tubing in low to medium pressure applications where vibration is minimal. This adapter meets ASA, ASME, and SAE standards. *Not For Use On Potable Water*.

• Made of brass
• Suitable for use with copper, aluminum, and thermoplastic tubing
• Meets ASA, ASME, and SAE standards

Product Highlights

This brass adapter is ideal for connecting 5/16" compression fittings to 3/8" male NPTF threads in various low-pressure applications.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18185

Technical Specifications

• Connection Size 1: 5/16 in
• Connection Size 2: 3/8 in
• Connection Type: Compression|MPT
• Connection Type 1: Tube OD
• Connection Type 2: Male NPTF
• Fitting Type: Adapter
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Hex Size: 0.68 in
• Material: Brass
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size 1: 1/2 - 24
• Thread Size 2: 3/8 - 18
• Shape (Orientation): Straight
• Ends Configuration: 5/16in Tube Compression, 3/8in Male NPTF
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Material Construction: Brass
