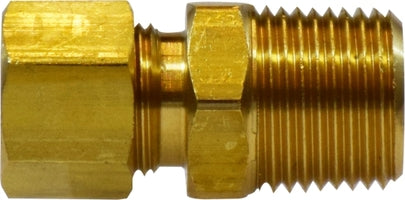

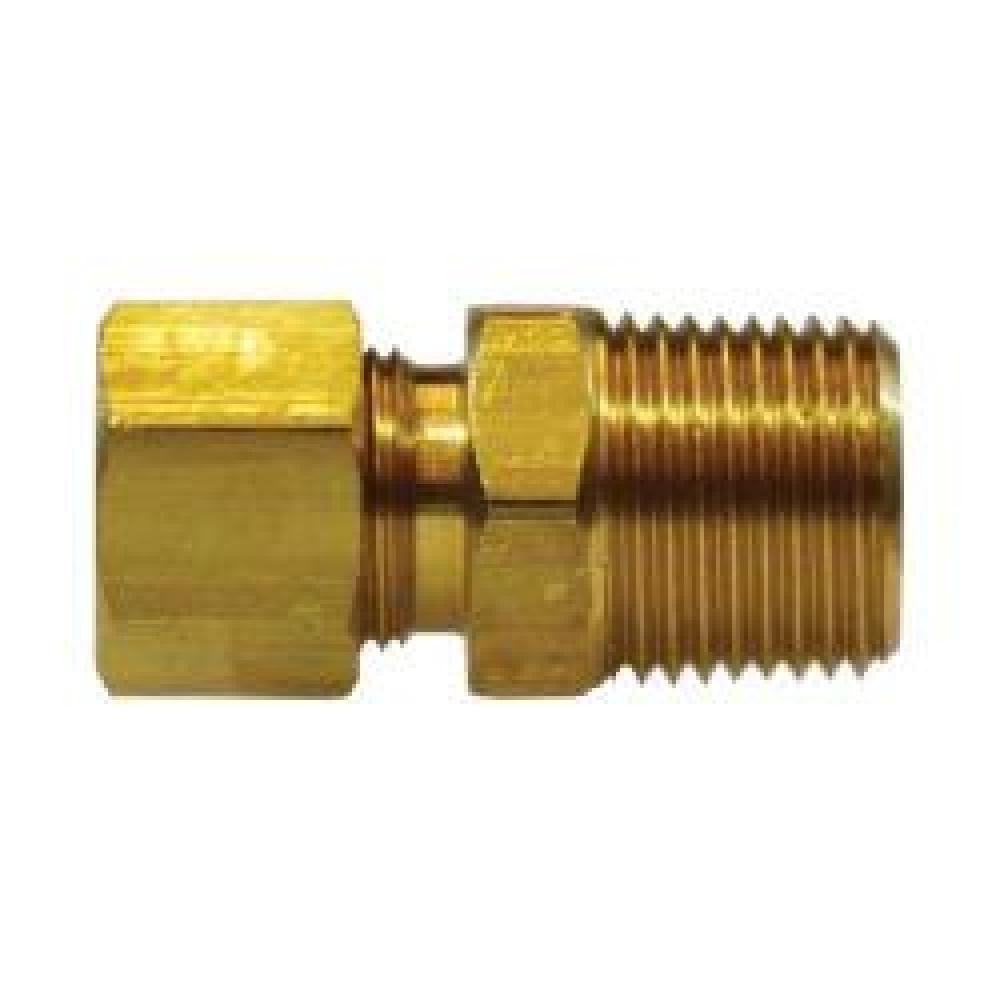

Midland Industries 18184L Adapter 5/16 X 1/4 Comp X MIP

Product Description

The Midland Industries 18184L is an adapter made from brass, featuring a 5/16 inch compression to 1/4 inch Male NPTF connection. It is suitable for low to medium pressure applications and works well with copper, aluminum, and thermoplastic tubing. This adapter is designed for situations where excessive vibration or tube movement is not expected.

• Brass construction
• Connection size one: five sixteenths inch compression
• Connection size two: one quarter inch male NPTF

Product Highlights

This product provides reliable connections for various tubing types and meets industry standards.

Product Information

Standard Information

• Brand: Midland Industries
• Fitting Type: Adapter

Technical Specifications

• Connection Size 1: 5/16 inch
• Connection Size 2: 1/4 inch
• Connection Type 1: Compression
• Connection Type 2: Male NPTF
• For Use With: Copper, aluminum, and thermoplastic tubing
• Hex Size: 0.56 inch
• Material: Brass
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 degrees F
• Shape (Orientation): Straight
• Ends Configuration: 5/16 inch tube compression, 1/4 inch male NPTF
• Applicable Specs & Approvals: Applicable ASA standards, applicable ASME standards, applicable SAE standards
• Thread Size 2: 1/4 - 18
