Midland Industries 18179 1/4 x 1/8 Comp x MIP Adapter

Product Description

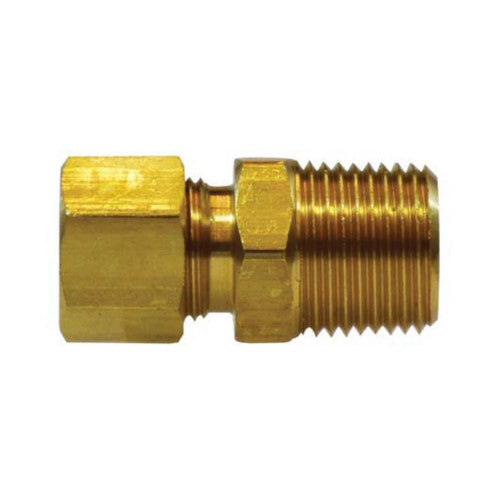

The MIDLAND INDUSTRIES 18179 adapter features 1/4-in compression x 1/8-in Male NPTF connections and is made of brass. This adapter is designed for use with copper, aluminum, and thermoplastic tubing in low to medium pressure applications. It meets specifications and standards of ASA, ASME and SAE. The fitting offers fair vibration resistance.

• Use with copper, aluminum and thermoplastic tubing.
• Not recommended for steel tubing.
• Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.

Product Highlights

This brass compression fitting is suitable for connecting 1/4-inch compression tubing to 1/8-inch male NPTF threads.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18179

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 1/4 in
• Connection Size 2: 1/8 in
• Connection Type: Compression|MNPTF
• Fitting Type: Adapter
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Hex Size: 0.43 in
• Material: Brass
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size 1: 7/16 - 24
• Thread Size 2: 1/8 - 27
• Shape (Orientation): Straight
• Ends Configuration: 1/4in Tube Compression, 1/8in Male NPTF
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Center to End: 0.88 in
