Midland Industries 18130 7/8 inches #65F Comp Union 90 feet

Product Description

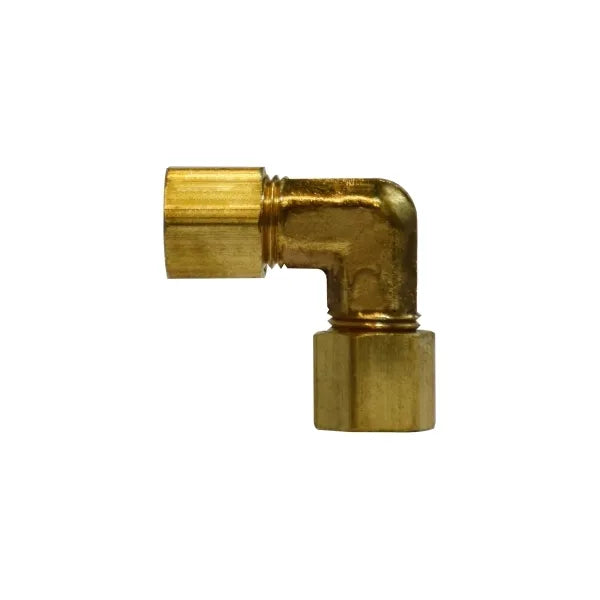

The MIDLAND INDUSTRIES 18130 is a 90-degree union elbow designed for use with copper, aluminum, and thermoplastic tubing. This brass compression fitting is manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. It is not recommended for steel tubing or applications using gaseous media.

• Constructed from durable brass material.
• Features 7/8-in compression connections on both ends.
• Suitable for temperatures ranging from -65 to 250 deg F.

Product Highlights

This brass 90-degree union elbow is ideal for connecting 7/8-inch tubes in various low to medium pressure applications.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18130

Technical Specifications

• Connection Size 1: 7/8 in
• Connection Size 2: 7/8 in
• Connection Type: Compression|Compression
• Connection Type 1: Compression
• Connection Type 2: Compression
• Fitting Type: 90-deg Elbow
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Material: Brass
• Material Construction: Forged Brass
• Pressure Rating: 75 psi
• Temperature Rating: -65 to 250 deg F
• Shape (Orientation): 90 Degree
• Ends Configuration: 7/8in Tube Compression, 7/8in Tube Compression, Some Ends Match
• Applications: Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
• Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
• Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
• Tube Size: 7/8"
• Working Pressure: 75 PSI
• Body Size: 0.94 in
• Center to End: 1-1/4 in
