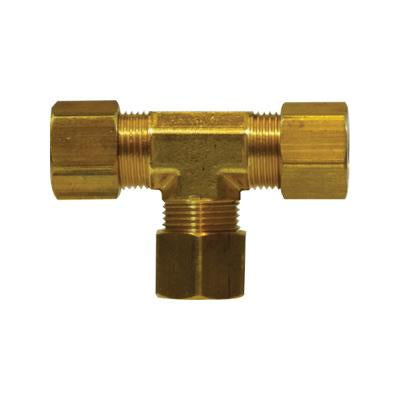

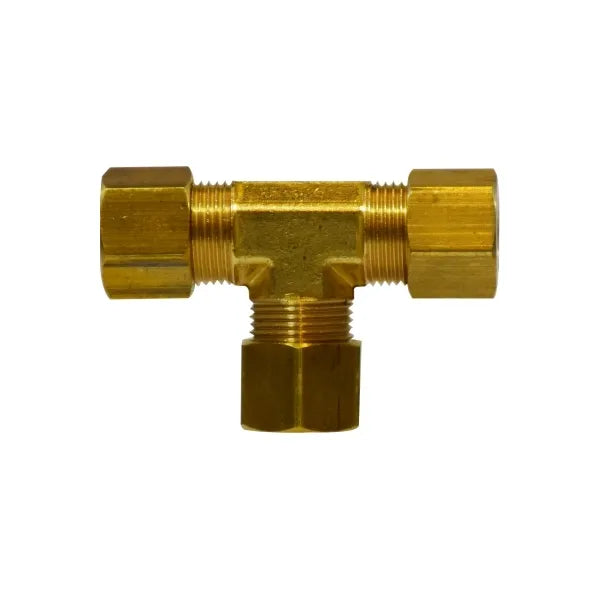

Midland Industries 18104 5/16 inches #64F Comp Union Tee

Product Description

The MIDLAND INDUSTRIES 18104 is a 5/16" #64F Comp Union Tee designed for use with copper, aluminum, and thermoplastic tubing. It is manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Note that it is not for use on potable water.

• Suitable for use with copper, aluminum, and thermoplastic tubing.
• Meets specifications and standards of ASA, ASME, and SAE.
• Fair vibration resistance.

Product Highlights

This brass tee fitting features compression connections and is suitable for low to medium pressure applications within a temperature range of -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18104

Technical Specifications

• Connection Size 1: 5/16 in
• Connection Size 2: 5/16 in
• Connection Size 3: 5/16 in
• Connection Type: Compression
• Fitting Type: Tee
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Material: Brass
• Material Construction: Forged Brass
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Shape (Orientation): Tee
• Ends Configuration: 5/16in Tube Compression, 5/16in Tube Compression, 5/16in Tube Compression
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Body Size: 1/2 in
• Center to End Size: 0.72 in
