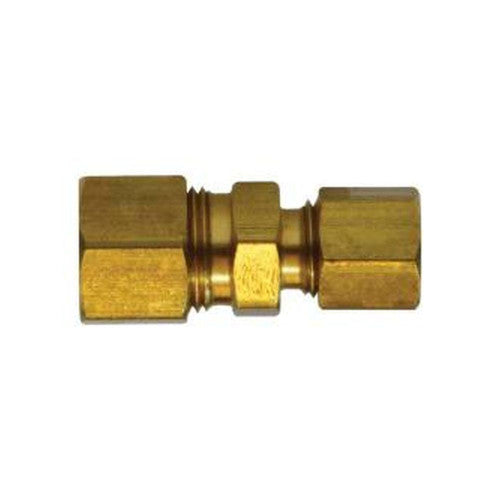

Midland Industries 18083 Reducing Union 5/8 inches Tube OD x 1/2 inches Tube OD

Product Description

The MIDLAND INDUSTRIES 18083 reducing union is designed for connecting tubes in low to medium pressure applications. It is suitable for use with copper, aluminum, and thermoplastic tubing. This fitting meets specifications and standards of ASA, ASME and SAE. Not recommended for steel tubing or applications using gaseous media.

• Constructed from brass material.
• Features 5/8" tube OD x 1/2" tube OD compression ends.
• Temperature range: -65°F to +250°F.

Product Highlights

This reducing union offers fair vibration resistance and is ideal for applications where tube movement is minimal.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18083
• Country of Origin: Unknown

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 5/8in Tube Compression, 1/2in Tube Compression
• Material(s): Brass
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Center to Center: 1.16 in
• Connection Size 1: 5/8 in
• Connection Size 2: 1/2 in
• Connection Type: Compression|Compression
• Connection Type 1: Compression
• Connection Type 2: Compression
• Fitting Type: Union
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Hex Size: 0.81 in
• Material: Brass
• Material Construction: Brass
• Pressure Rating: 150 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 13/16-18
• Nominal Size: 5/8 x 1/2 in
• End Style: Compression
