Midland Industries 18078 5/16 inches x 1/4 inches #62F Comp Union

Product Description

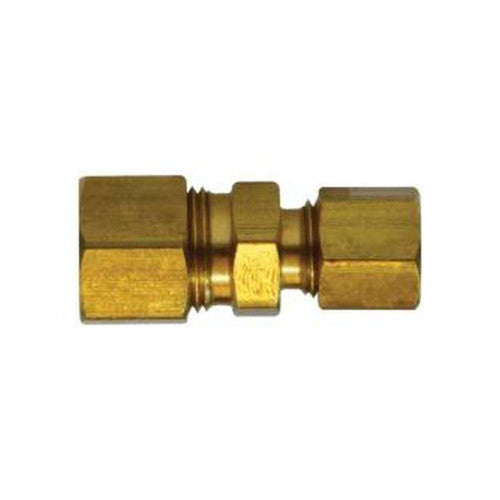

The Midland Industries 18078 reducing union connects tubes of different sizes in low to medium pressure applications. This brass fitting is suitable for use with copper, aluminum, and thermoplastic tubing. It is manufactured to meet ASA, ASME, and SAE standards. Not recommended for steel tubing or gaseous media applications.

• Connects 5/16" and 1/4" tubes
• Made of durable brass
• Operating temperature range of -65 to 250 degrees F

Product Highlights

This brass reducing union is ideal for connecting different sized tubes in various applications. It offers fair vibration resistance and meets industry standards.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18078

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 5/16in Tube Compression, 1/4in Tube Compression
• Material(s): Brass
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Connection Size 1: 5/16 in
• Connection Size 2: 1/4 in
• Connection Type 1: Compression
• Connection Type 2: Compression
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Hex Size: 1/2 in
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 1/2-24
• Center to Center: 0.81 in
• Fitting Type: Union
• Category: Hydraulic Fitting
