Midland Industries 18077 Reducing Union 1/4 in Compression x 3/16 in Compression

Product Description

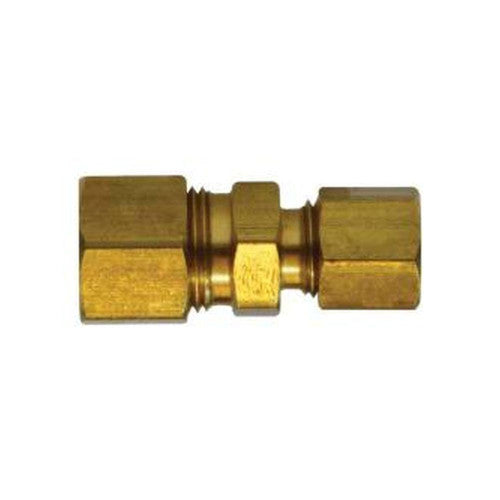

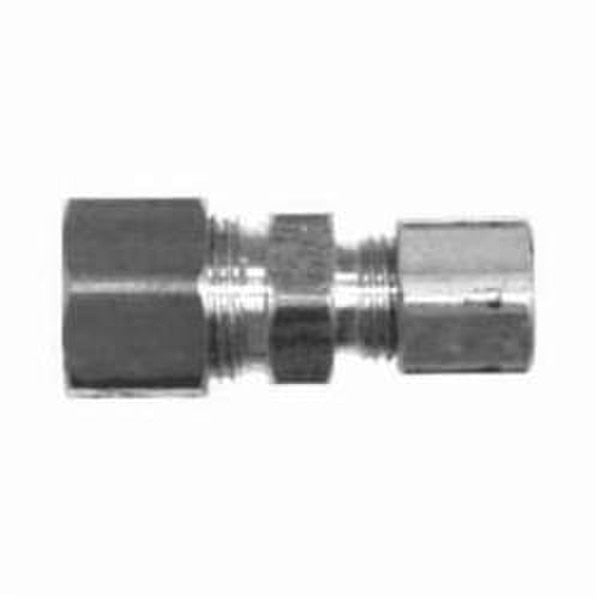

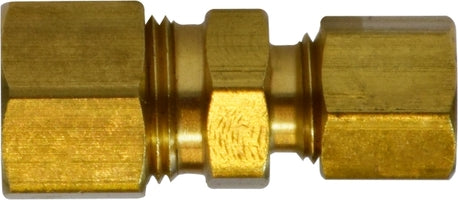

The Midland Industries 18077 reducing union is a brass fitting designed with one-fourth inch compression and three-sixteenth inch compression connections. This fitting works effectively with copper, aluminum, and thermoplastic tubing, suitable for low to medium pressure applications. This product meets various industry standards including ASA, ASME, and SAE.

• Brass construction ensures durability.
• Compatible with aluminum, copper, and thermoplastic tubing.
• Designed for low to medium pressure systems.

Product Highlights

Midland Industries offers reliable solutions for plumbing and HVAC needs with the 18077 reducing union.

Product Information

Standard Information

• Brand: Midland Industries
• UPC: 642688180775

Technical Specifications

• Connection Size 1: 1/4 in
• Connection Size 2: 3/16 in
• Connection Type: Compression
• Fitting Type: Union
• For Use With: Copper, Aluminum, and Thermoplastic Tubing
• Hex Size: 0.44 in
• Material: Brass
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Shape (Orientation): Straight
• Ends Configuration: 1/4in Tube Compression, 3/16in Tube Compression
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Center to Center: 0.78 in
