Midland Industries 18076 Reducing Union 1/4 inches x 1/8 inches

Product Description

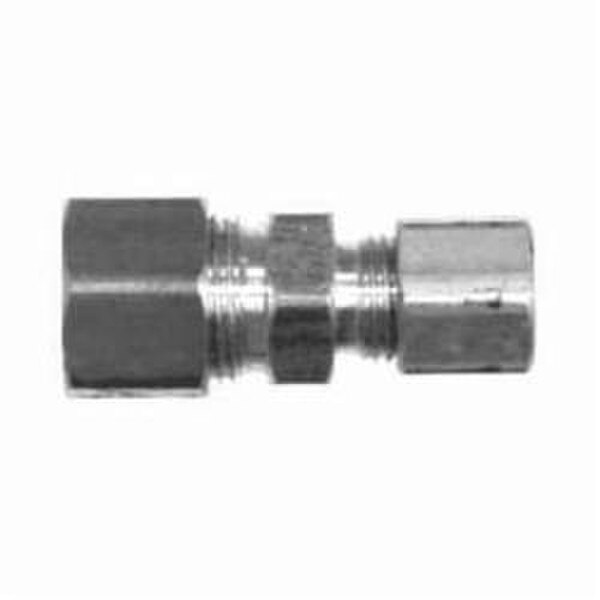

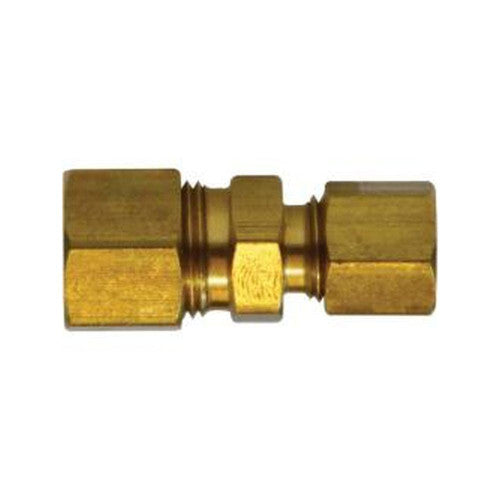

The MIDLAND INDUSTRIES 18076 reducing union connects 1/4" and 1/8" compression fittings. Constructed from brass, this union is suitable for use with copper, aluminum, and thermoplastic tubing in low to medium pressure applications. It withstands temperatures from -65 to 250 degrees F and pressures up to 300 psi. Not for use on potable water.

• Connects 1/4" and 1/8" compression fittings
• Made of brass
• Suitable for use with copper, aluminum, and thermoplastic tubing

Product Highlights

This brass reducing union is ideal for connecting different sized compression fittings in low to medium pressure applications.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18076

Technical Specifications

• Connection Size 1: 1/4 in
• Connection Size 2: 1/8 in
• Connection Type: Compression|Compression
• Connection Type 1: Compression
• Connection Type 2: Compression
• Fitting Type: Union
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Hex Size: 0.44 in
• Material: Brass
• Material Construction: Brass
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 7/16-24
• Center to Center: 0.73 in
• Shape (Orientation): Straight
• Ends Configuration: 1/4in Tube Compression, 1/8in Tube Compression
• Material(s): Brass
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
