Midland Industries 10406 1/4 Male Flare Elbow 90-deg

Product Description

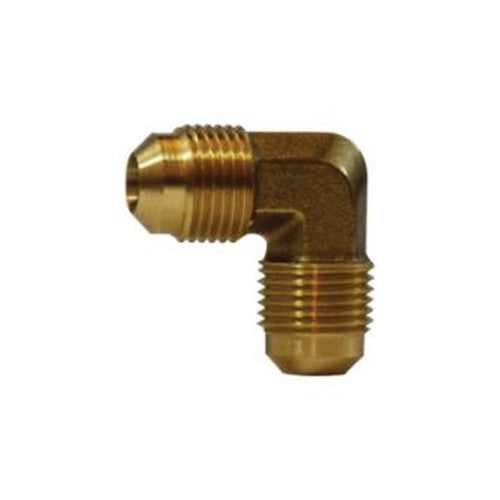

The MIDLAND INDUSTRIES 10406 is a 90-deg elbow with 1/4-in male flared connections on both ends, constructed from brass. It is designed for use with aluminum, brass, copper, and steel hydraulic tubing that can be flared. This fitting is suitable for applications involving LP and natural gas, flammable liquids, instrumentation, refrigeration, and hydraulic and pneumatic systems.

• Features 1/4-in male flared connections on both ends.
• Constructed from forged brass for durability.
• Suitable for use with various tubing materials including aluminum, brass, copper, and steel.

Product Highlights

This 90-degree elbow fitting is ideal for creating connections in hydraulic and pneumatic systems, refrigeration, and other applications requiring flared connections.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 10406

Technical Specifications

• Connection Size 1: 1/4 in
• Connection Size 2: 1/4 in
• Connection Type: Male Flared|Male Flared
• Connection Type 1: Male Flared
• Connection Type 2: Male Flared
• Fitting Type: 90-deg Elbow
• For Use With: Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
• Material: Brass
• Material Construction: Forged Brass
• Pressure Rating: 1400 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 7/16-20 UNF
• Shape (Orientation): 90 Degree
• Ends Configuration: 1/4in Male SAE 45 Flare, 1/4in Male SAE 45 Flare, Some Ends Match
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards
• Tube Wall Thickness: 0.03 in
• Center to End: 0.81 in
