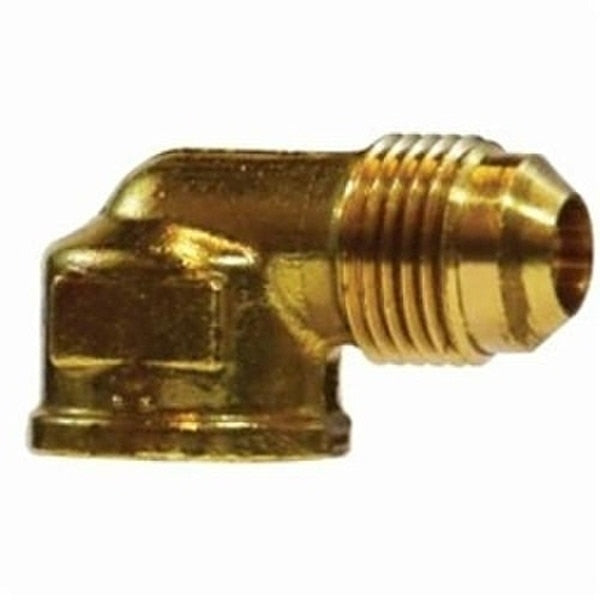

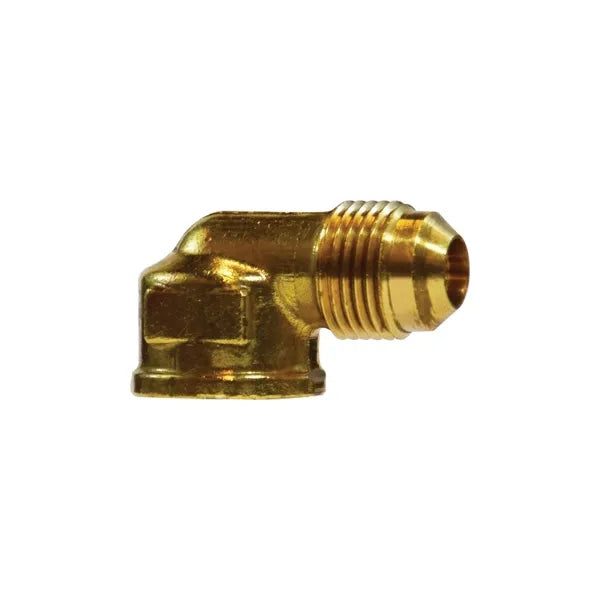

Midland Industries 10330 3/4 inches x 1/2 inches #50F Flare x F 90

Product Description

The MIDLAND INDUSTRIES 10330 is a 3/4" x 1/2" #50F Flare x F 90 fitting. It is designed for use with copper, brass, aluminum, and steel hydraulic tubing that can be flared. Note that it is not for use on potable water. The fitting meets specifications and standards of ASA, ASME, SAE and MS (Military standards).

• 90 deg Elbow fitting
• Connection Size 1: 3/4 in, Connection Size 2: 1/2 in
• Temperature Range: -65 to 250 deg F

Product Highlights

This brass fitting is suitable for LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 10330

Technical Specifications

• Connection Size 1: 3/4 in
• Connection Size 2: 1/2 in
• Connection Type 1: Male Flared
• Connection Type 2: FNPTF
• Fitting Type: 90 deg Elbow
• For Use With: Copper, Brass, Aluminum, Steel Hydraulic Tubing
• Material: Brass
• Material Construction: Forged Brass
• Pressure Rating: 550 psi
• Temperature Rating: -65 to 250 deg F
• Temperature Range: -65 to 250 deg F
• Shape: 90 deg Elbow
• Ends Configuration: 3/4in Male SAE 45 Flare, 1/2in Female NPTF
• Material(s): Brass
• Applicable Specs & Approvals: ASA, ASME, SAE, MS (Military Standards)
