Midland Industries 10287 1/4 inches x 1/4 inches #49F FL x M 90 feet

Product Description

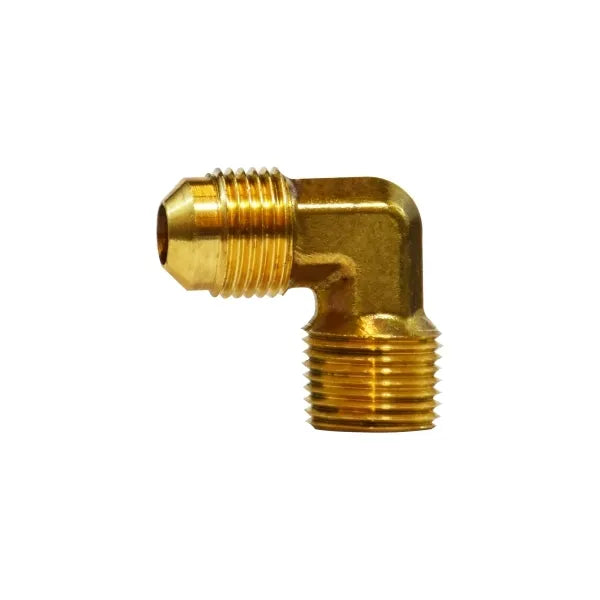

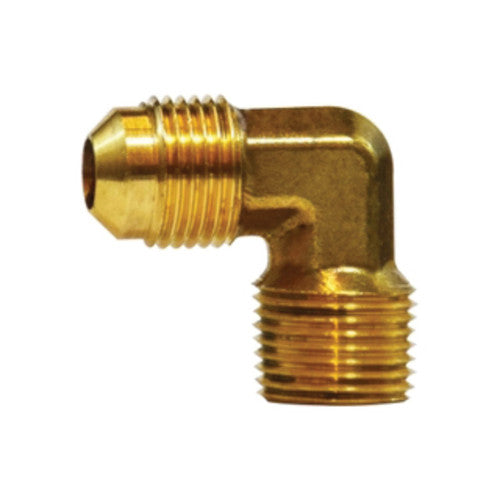

The MIDLAND INDUSTRIES 10287 is a 90-degree male elbow with a 1/4-in male flared x 1/4-in male NPTF connection, made of brass. It is designed for use with copper, brass, aluminum, and steel hydraulic tubing. This fitting supports directional changes in hydraulic, pneumatic, and fluid transfer systems.

• Forged Brass Construction enhances durability and corrosion resistance.
• Features a 1/4-inch male flare connection and a 1/4-inch male NPTF thread.
• Provides a secure, leak-resistant seal for compatible tubing materials.

Product Highlights

The MIDLAND INDUSTRIES 10287 brass elbow ensures a tight and reliable fit for hydraulic or fluid system components, with a 90-degree design for efficient directional changes.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 10287

Technical Specifications

• Connection Size 1: 1/4 in
• Connection Size 2: 1/4 in
• Connection Type 1: Male Flared
• Connection Type 2: Male NPTF
• Fitting Type: 90-deg Elbow
• For Use With: Copper, Brass, Aluminum and Steel Hydraulic Tubing
• Material: Brass
• Material Construction: Forged Brass
• Pressure Rating: 1400 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size 1: 7/16 - 20
• Thread Size 2: 1/4 - 18
• Shape (Orientation): 90 Degree
• Ends Configuration: 1/4in Male SAE 45 Flare, 1/4in Male NPTF
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards
• Body Size: 0.44 in
• Center to End: 0.81 x 0.88 in
• Tube Wall: 0.03 in
• Category: Brass Fittings
• Master Item: Male Elbow
