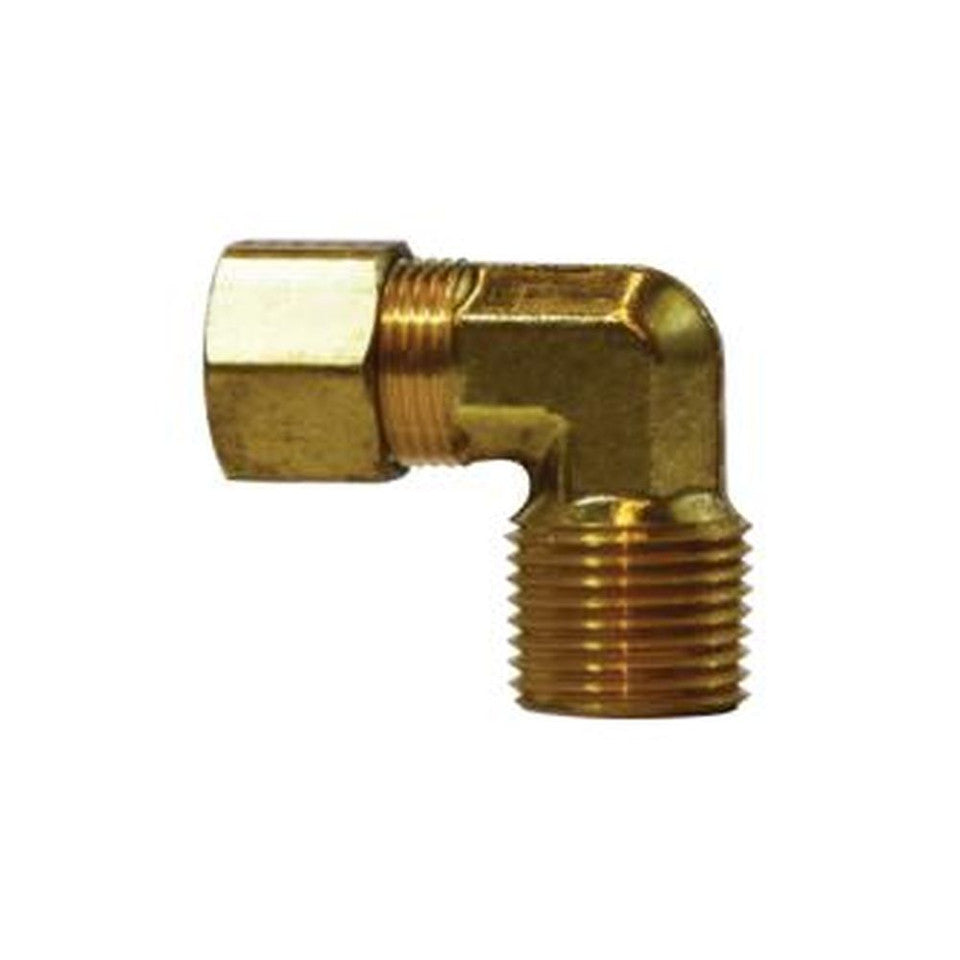

Midland Industries 00069-0808 90 Elbow 1/2 Comp X 1/2 Mnptf Brass

Product Description

The MIDLAND INDUSTRIES 00069-0808 is a 90-degree elbow fitting machined from forged brass for use in compression-to-male-NPTF connections. It accepts 1/2 inch compression tubing on one end and threads into a 1/2 inch male NPTF port on the other, making a direction change in a single fitting. Rated to 200 psi and suitable for temperatures from -65 to 250 degrees F, this elbow is built for demanding plumbing, refrigeration, and gas-line applications. Plumbers, HVAC technicians, and mechanical contractors install this type of fitting when routing tubing around obstructions or transitioning from a threaded port to a compression line in a confined space.

This fitting is intended for use with copper, aluminum, and thermoplastic tubing in residential and light commercial systems. Typical applications include hydronic heating lines, refrigerant piping, compressed air, and fuel gas tubing runs where a 90-degree change of direction is required at a threaded port. The forged brass construction resists corrosion and handles the mechanical stress of compression joints in vibration-prone environments. Its compact body size of 0.59 inches and center-to-end dimensions of 0.94 by 1.13 inches make it suited for tight installations.

Key Features

• Forged brass construction for strength and corrosion resistance
• 90-degree elbow routes tubing in space-constrained installations
• 1/2 inch compression inlet compatible with copper, aluminum, and thermoplastic tubing
• 1/2 inch male NPTF outlet for leak-resistant threaded port connections
• 200 psi pressure rating for demanding service conditions
• Wide temperature range: -65 to 250 degrees F

Compatibility

Designed for use with copper, aluminum, and thermoplastic tubing in compression-to-male-NPTF applications. Suitable for plumbing, HVAC, refrigeration, compressed air, and fuel gas systems requiring a 90-degree directional change at a 1/2 inch threaded port.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes, IPC, and IFGC requirements. Shut off and relieve pressure from the line before disassembly or fitting installation. Ensure tubing is cut cleanly and deburred before seating in the compression end, and hand-tighten the compression nut before applying a final wrench turn to avoid over-compression. Do not exceed the rated pressure or temperature limits of the fitting.

Technical Specifications

• Fitting Type: 90 Degree Elbow
• Connection Size 1: 1/2 inch
• Connection Type 1: Compression
• Connection Size 2: 1/2 inch
• Connection Type 2: Male NPTF
• Thread Size: 11/16-20 x 1/2-14
• Material: Forged Brass
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 degrees F
• Body Size: 0.59 inches
• Center to End: 0.94 x 1.13 inches
• Weight: 0.149 pounds
• For Use With: Copper, Aluminum and Thermoplastic Tubing

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 00069-0808
