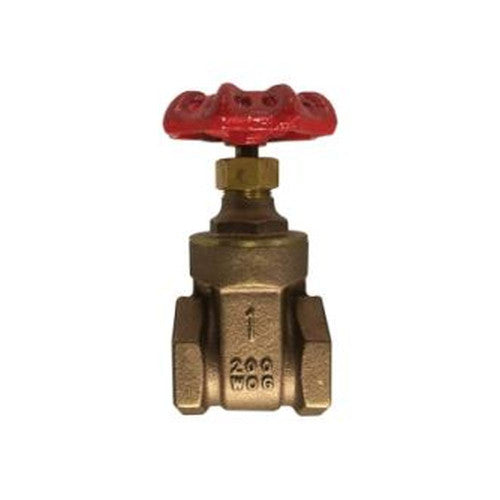

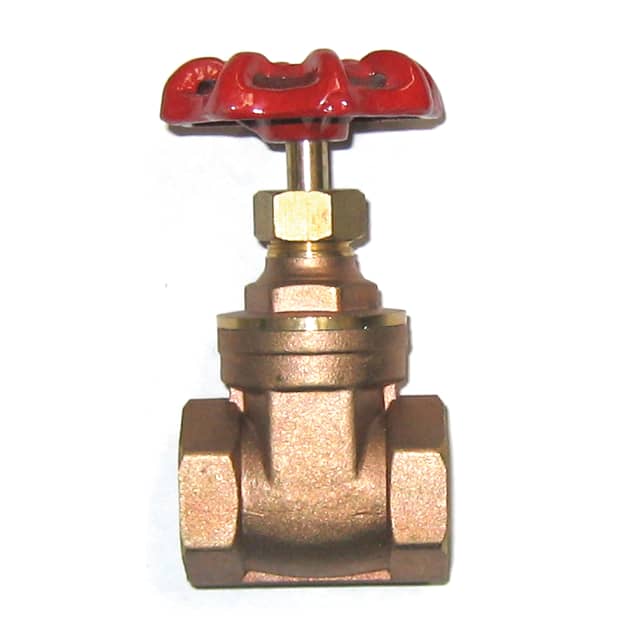

Midland 940135 1-1/4 fipxfip full port gate valve

Product Description

The MIDLAND INDUSTRIES 940135 is a full-port gate valve with a 1-1/4-in nominal size and FPT x FPT connection. Constructed with a brass body, this valve is suitable for cold water, gas, and oil media, operating within a temperature range of 32 to 320 deg F and a pressure rating of 200 psi WOG.

• Full-port design for a better water flow.
• Individually air tested under water.
• Suitable for diesel fuel.

Product Highlights

This gate valve features a full port, brass body, and is suitable for a variety of media including cold water, gas and oil.

Product Information

Standard Information

• Brand: MIDLAND
• Manufacturer Part Number: 940135
• Country of Origin: Indonesia

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Body Material: Brass
• Connection Type: FPT x FPT
• Disc Material: Brass
• Handle Material: Cast Iron
• Inlet to Outlet Length: 2.24 in
• Lead-Free/Contains Lead: Contains Lead
• Media: Cold Water, Gas, Oil
• Nominal Size: 1-1/4 in
• Operator Type: Cast Handle
• Packing Material: Brass
• Port Type: Full
• Pressure Rating: 200 psi WOG
• Seat Material: Fiber
• Stem Material: Cast Brass
• Temperature Rating: 32 to 320 °F
• Thread Size: 1-1/4 - 11-1/2
• Top to Inlet Center: 4.5 in
• Shape (Orientation): Straight
• Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
• Material(s): Brass
• Seal Material(s): NBR
• MFG #: 940135
• Size: 1-1/4"
• Category: Gate Valves
• Additional Information: Non-Rising Stem
• Domestic/Import: Import
