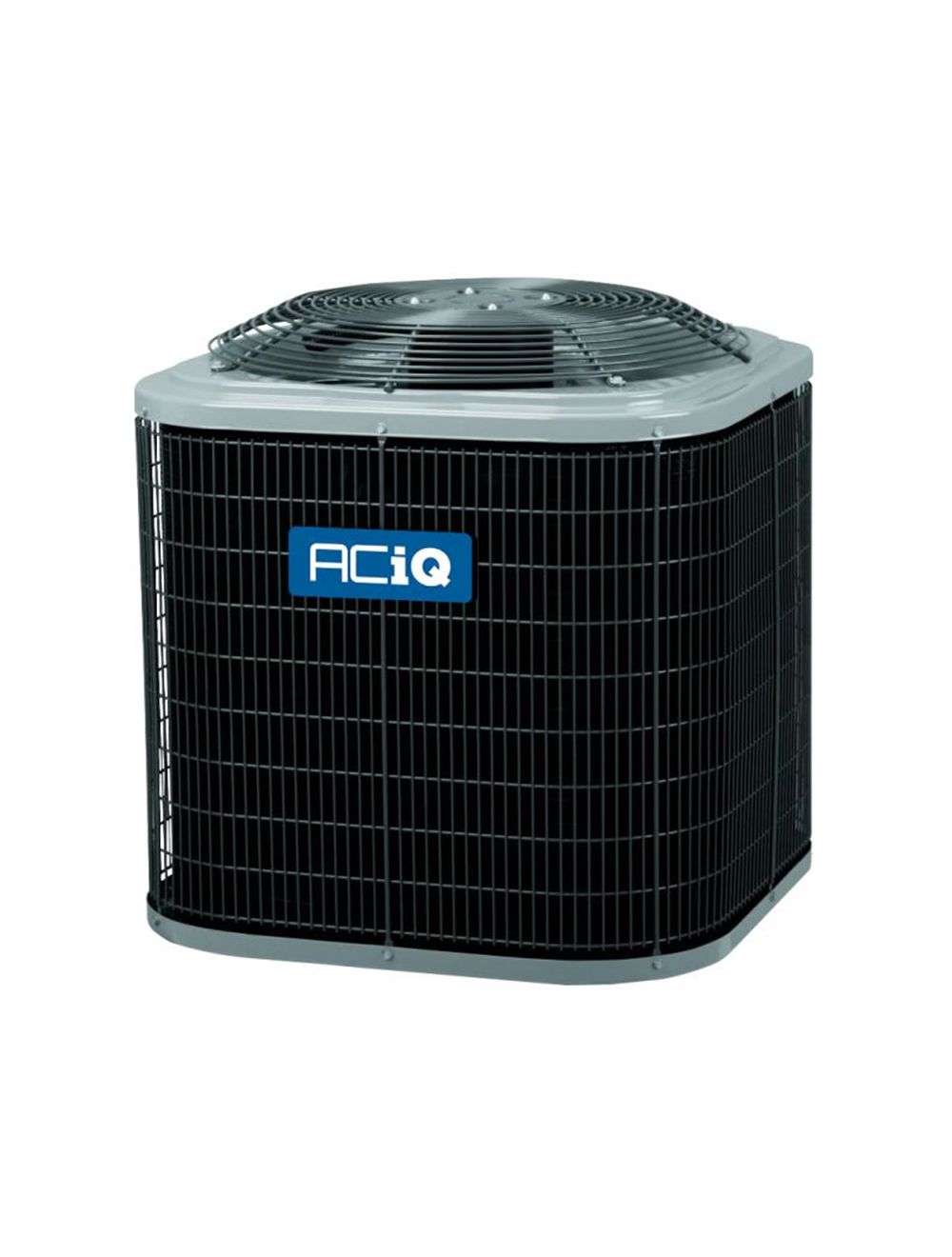

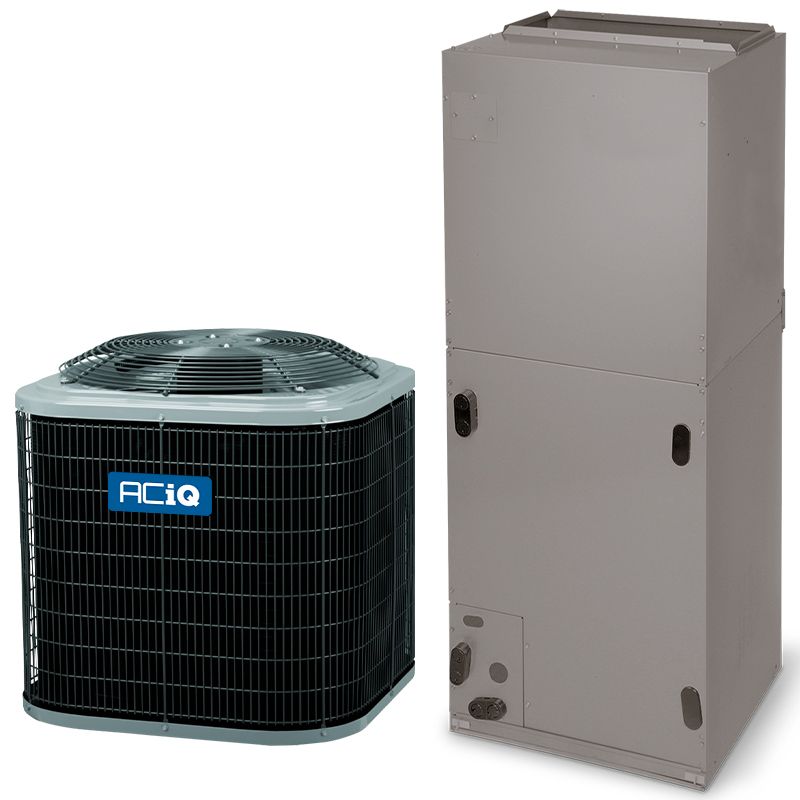

Midea R5H5S36AKAAA ACIQ 3 Ton 15.2 SEER2 Heat Pump Split System - R454B Single Stage - Multi-Positional replaces R4H5S

Product Description

The MIDEA R5H5S36AKAAA ACIQ heat pump air conditioning system offers a great price and many extra features, making it perfect for all heating and cooling needs. This standard heat pump condenser is designed with comfort in mind and is an inexpensive option for nearly any application. It is pre-charged with R454B refrigerant for a 15-foot line set.

• Complete all-electric heating and cooling system
• Certified for use with R454B refrigerant
• Can be installed in upflow, downflow, or horizontal applications

Product Highlights

This ACIQ condenser comes pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. It is a good all-around option for almost any application.

Product Information

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: R5H5S36AKAAA

Technical Specifications

• SKU: FHMA5X42L0CA
• Brand/Manufacturer: ACiQ
• Cooling BTU: 36,000
• Blower Motor: Multi-tap 5-Speed ECM
• Maximum CFM: 3500
• Horsepower: 1/4 HP
• Electric Backup Heat Capabilities (Optional): 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
• Configuration: Multi-Positional
• Refrigerant: R454B
• Filter Size: 20" x 20"
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Electrical: 208/230v 1Ph 60Hz
• Max Breaker Size: 30 Amps
• Min. Breaker Size: 19.2 Amps
• Tonnage: 3 Ton
• Connection: Sweat
• Liquid Valve Size: 3/8"
• Suction Valve Size: 3/4"
• HSPF2: 7.5
• Heating BTU: 36,000
• Decibel Level (dBA): 76
• Motor RPM: 825
• Electric Heat: Heat Pump
• SEER2 (Efficiency): 14.3
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Min/Max Outdoor Temp for Heating: -10 F 66 F
• Min/Max Outdoor Temp for Cooling: 55 F 125 F
• Ambient Temperature Range: 55 F 125 F
• Model Number: R5H5S36AKAAA
• Product Features: Basic Efficiency, New Refrigerant Compliant
