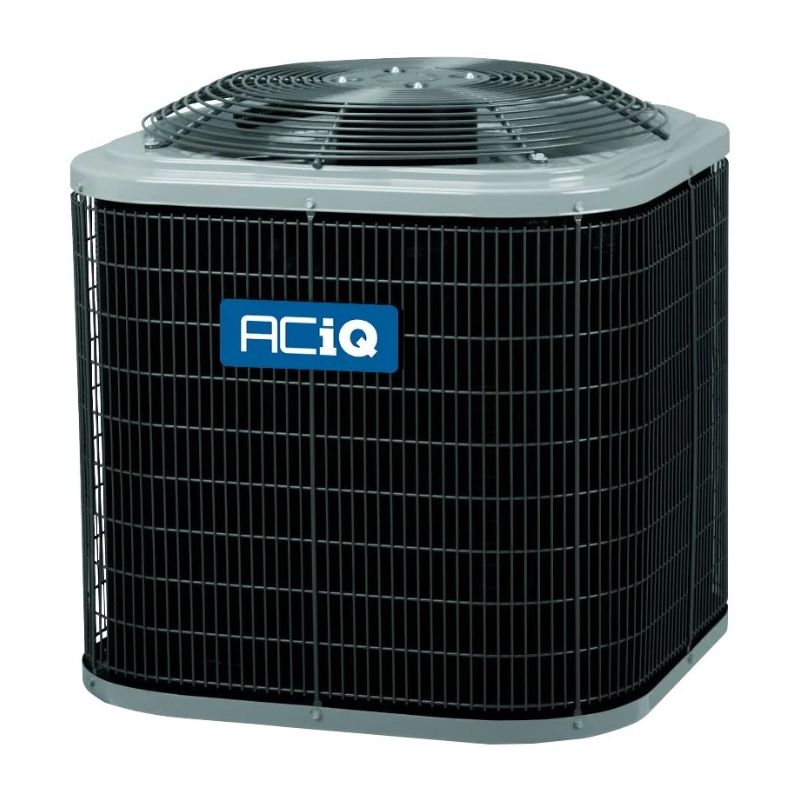

Midea N4H5S60AKAAA ACiQ 5 Ton 14.3 SEER2 Heat Pump Condenser - R410A Single Stage

Product Description

The MIDEA N4H5S60AKAAA ACiQ heat pump condenser is designed for comfort and is suitable for many applications. This 5 ton, 14.3 SEER2 heat pump condenser can cool up to a small house in average conditions. It features a single stage compressor and includes a filter drier for field installation. The unit requires an indoor coil or air handler to function.

• 5 ton, 14.3 SEER2 heat pump condenser
• Can cool up to a small house in average conditions
• Single stage compressor

Product Highlights

The ACiQ N4H5S60AKAAA heat pump condenser has an output of 5 tons, generally enough to heat and cool up to a small house in ideal climates.

Product Information

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: N4H5S60AKAAA

Technical Specifications

• SKU: N4H5S60AKAAA
• Brand/Manufacturer: ACiQ
• Product Features: Basic Efficiency
• Cooling BTU: 60,000
• Heating BTU: 60,000
• Decibel Level (dBA): 74 Decibels
• Motor RPM: 825
• Horsepower: 0.25 HP
• Refrigerant: R410A
• SEER2 (Efficiency): 14.3
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8"
• Electrical: 208/230v 1 Phase 60 Hz
• Phase: Single Phase
• Max Breaker Size: 50 Amps
• Min. Breaker Size: 33.2 Amps
• Tonnage: 5 Ton
• Height: 38 7/8"
• Width: 35"
• Depth: 35"
