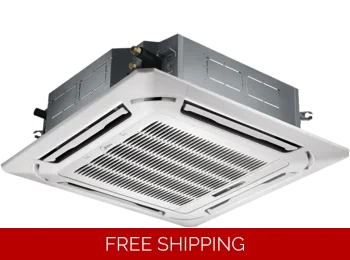

Midea ksalg0201aaa 36000 Btu Ceiling Cassette Indoor Unit

Product Description

The MIDEA ksalg0201aaa is a 36000 BTU ceiling cassette indoor unit designed for use in ductless heat pump systems. It handles both cooling and heating and is powered directly from the outdoor unit, requiring no separate power supply connection at the air handler. The unit operates at 208/230 volts, single-phase, 60 Hz, with a minimum circuit ampacity of 0.8 amps. The body measures 33.07 inches wide by 33.07 inches deep by 9.65 inches tall and weighs 58.2 pounds. Installation is typically performed by licensed HVAC technicians working on commercial or residential multi-zone ductless applications.

This cassette indoor unit is suited for ceiling-recessed installations in commercial spaces, retail environments, offices, or large residential rooms where concealed, four-way airflow distribution is required. It delivers airflow ranging from 809 to 1095 CFM across three fan speeds and an air throw reach of 30 feet. The unit pairs with DLFLCA and DLFSCA series heat pump systems in 24, 36, and 48 nominal sizes. Compatible indoor model designation is DLFLCAH36XAK.

Key Features

• 36000 BTU nominal capacity for both heating and cooling operation
• Three selectable fan speeds with airflow from 809 to 1095 CFM
• Indoor unit powered from outdoor unit — no separate breaker required at the cassette
• Liquid line connection at 3/8 inch and suction line at 5/8 inch
• Sound pressure levels from 49 to 55 dB(A) depending on fan speed
• Moisture removal capacity of 8.53 pints per hour
• Separate decorative grille panel measuring 37.4 inches wide by 37.4 inches deep by 2.17 inches tall, weighing 11.02 pounds

Compatibility

Designed for use with MIDEA DLFLCA and DLFSCA series cassette heat pump systems in 24, 36, and 48 nominal sizes. Corresponding indoor model number is DLFLCAH36XAK.

Installation Notes

Installation of this ceiling cassette unit must be performed by a licensed HVAC technician familiar with ductless heat pump systems. Shut down and lock out the outdoor unit before making electrical or refrigerant piping connections. Field drain pipe connection requires a 1 inch outside diameter drain line. Refrigerant piping and electrical work must comply with applicable local codes and manufacturer specifications.
