Midea FCM4X6000AL ACiQ Communicating Air Handler 5 Ton replaces FCM4X6000AL

Product Description

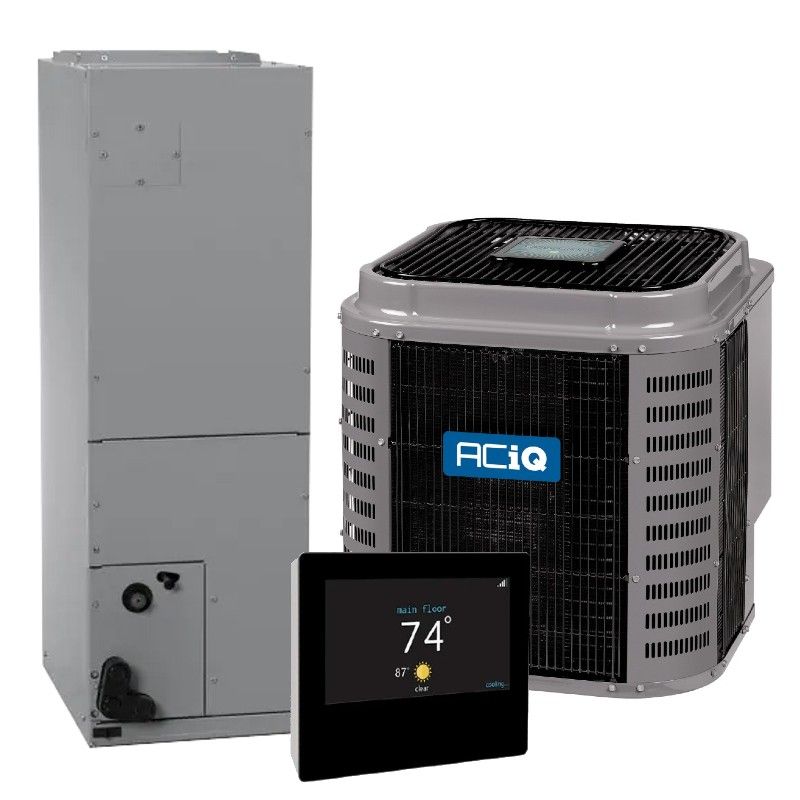

The MIDEA FCM4X6000AL ACiQ air handler is designed to keep homes comfortable year-round. Part of their top-of-the-line series, this 5 ton air handler features a variable speed communicating blower motor and an integrated TXV kit. It provides enhanced dehumidification and temperature control. The unit is multi-positional for upflow, downflow, and horizontal configurations.

• 5 ton air handler
• Variable speed communicating blower motor
• Enhanced dehumidification and temperature control
• Multi-positional - can be installed in the upflow, downflow, and horizontal configurations

Product Highlights

The FCM4X6000AL air handler has an ECM variable speed blower motor, increasing its efficiency and providing a more stable temperature.

Product Information

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: FCM4X6000AL

Technical Specifications

• Brand/Manufacturer: ACiQ
• Replaces: FCM4X6000AL
• Communicating: Yes
• Blower Motor: Variable Speed
• Maximum CFM: 1750
• Motor RPM: 300-1300
• Horsepower: .75 HP
• Electric Backup Heat Capabilities (Optional): 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts, 25 Kilowatts, 30 Kilowatts
• Refrigerant: R410A
• Filter Size: 23 5/16" x 21 1/2"
• EER: 9.5-13
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Electrical: 208/230v 1 Phase 60 Hz
• Phase: Single Phase
• Max Breaker Size: 15 Amps
• Tonnage: 5 Ton
• Connection: Sweat
• Certification: UL Listed
• Height: 59 3/16"
• Width: 24 11/16"
• Depth: 22 1/16"
