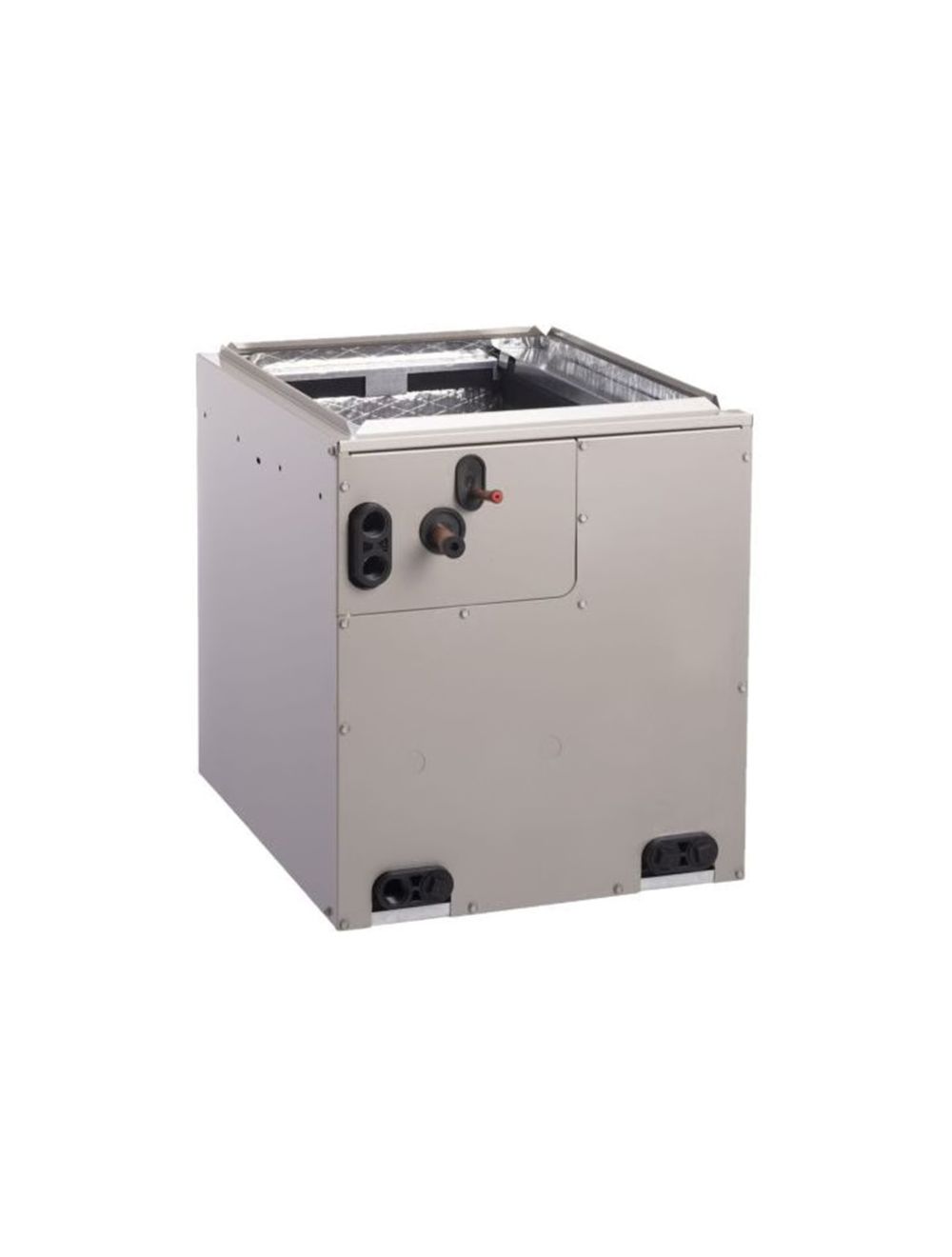

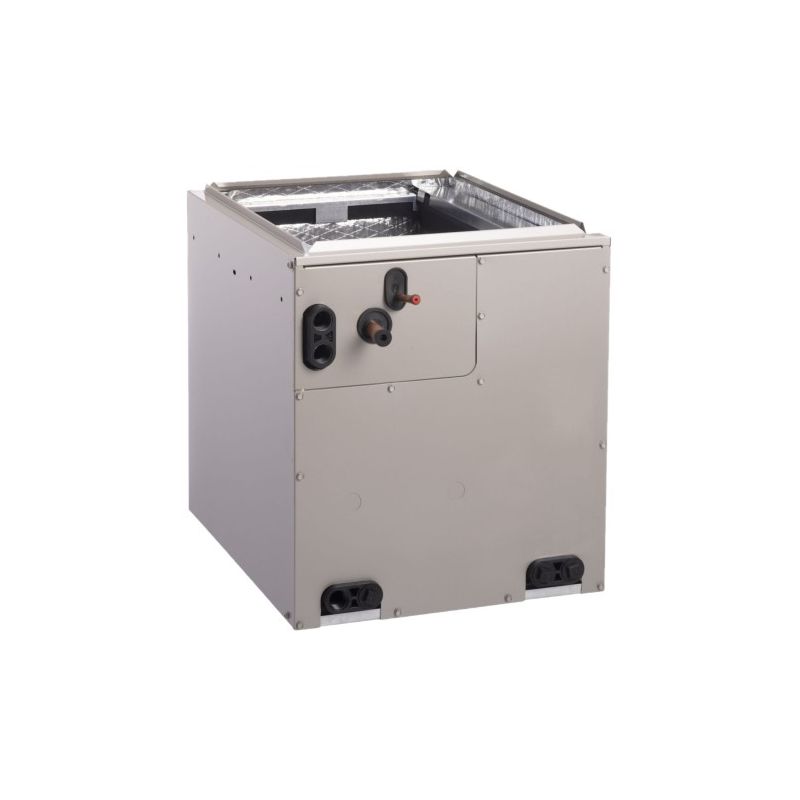

Midea EVM5X44M21A ACIQ 3.5 Ton 21 inches Width Multi-Positional Cased Evaporator Coil - R454B REPLACES EVM4X

Product Description

The MIDEA EVM5X44M21A ACIQ patent-pending multipoise evaporator coil with Power-V technology features a V-shape coil design that provides excellent heat transfer. This keeps your system operating at peak energy efficiency and delivering consistent comfort. The multipoise design allows flexible installation in upflow, downflow, and horizontal applications.

• Can be installed in the upflow, downflow, or horizontal orientations
• Pre-charged with R454B refrigerant

Product Highlights

Features a V-shape, corrosion-resistant all-aluminum coil and a fully insulated cabinet. Includes an efficiency-optimizing Thermostatic Expansion Valve (TXV) metering device.

Product Information

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: EVM5X44M21A
• Country of Origin: USA

Technical Specifications

• SKU: EVM5X44M21A
• Brand/Manufacturer: ACiQ
• Replaces: EVM4X
• Coil Type: Aluminum V-Coil
• Configuration: Multi-Positional
• Refrigerant: R454B
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Tonnage: 3.5 Ton
• Style: V-Coil
• Connection: Sweat
• Certification: UL and c-UL Listed
• Height: 29 3/4"
• Width: 21"
• Depth: 20 5/8"
• Model Number: EVM5X44M21A
• Metering Device: TXV
