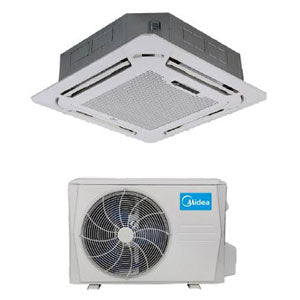

Midea Ductless DLFSCA/DLCSRA Single Zone Advantage Series Cassette Mini-Split System 12,000 Btu/h

• Midea Ductless DLFSCA/DLCSRA Single Zone Advantage Series Cassette System 12000 Btu/h Kit
• Components: Midea Ductless DLFSCAH12XAK Advantage Series Indoor Cassette Unit 12000 Btu/h & Midea Ductless DLCSRAH12AAK Advantage Series Outdoor Unit 12000 Btu/h & Midea Ductless KSALG0101AAA Advantage Series 2'x2' Indoor Cassette Grille/Ceiling Panel Sizes 09 to 18

Indoor Unit:

• Available in 208/230V
• Up to 22.5 SEER and 12.0 HSPF when paired with DLCSRA outdoor unit
• Modes: Cool, Heat, Dry, Fan, Auto
• Auto-restart function
• Louver control (fixed or swing)
• Three fan speeds
• Outside air intake
• Built-in condensate lift pump
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Quiet indoor operation, as low as 27 dB(A)
• Aluminum Golden Hydrophilic pre-coated fins
• Grille/ceiling panel 2’ x 2’ sizes 9 to 18 KSALG0101AAA
• Grille/ceiling panel 3’ x 3’ size 24 P/N KSALG0201AAA

Outdoor Unit:

• 100% heating capacity at 5° F (-15° C) sizes 12-18 (208/230V)
• Available in 115V and 208/230V
• Built-in basepan heater
• Auto-restart function
• Condenser high-temperature protection
• Refrigerant leakage detection
• Quiet outdoor operation, as low as 54.6 dB(A)
• Aluminum Golden Hydrophilic pre-coated fins
• Piping length 82 ~ 164 ft. (25 ~ 50 m.)
• Cooling operating range -13° ~ 122° F (-25° ~ 50° C)
• Heating operating range -22° ~ 86° F (-30° ~ 30°C) -Sizes 9-24 (208/230V) -13° ~ 86° F (-25° ~ 30° C) –Sizes 9, 12 (115V) & 30, 36 (208/230V)
