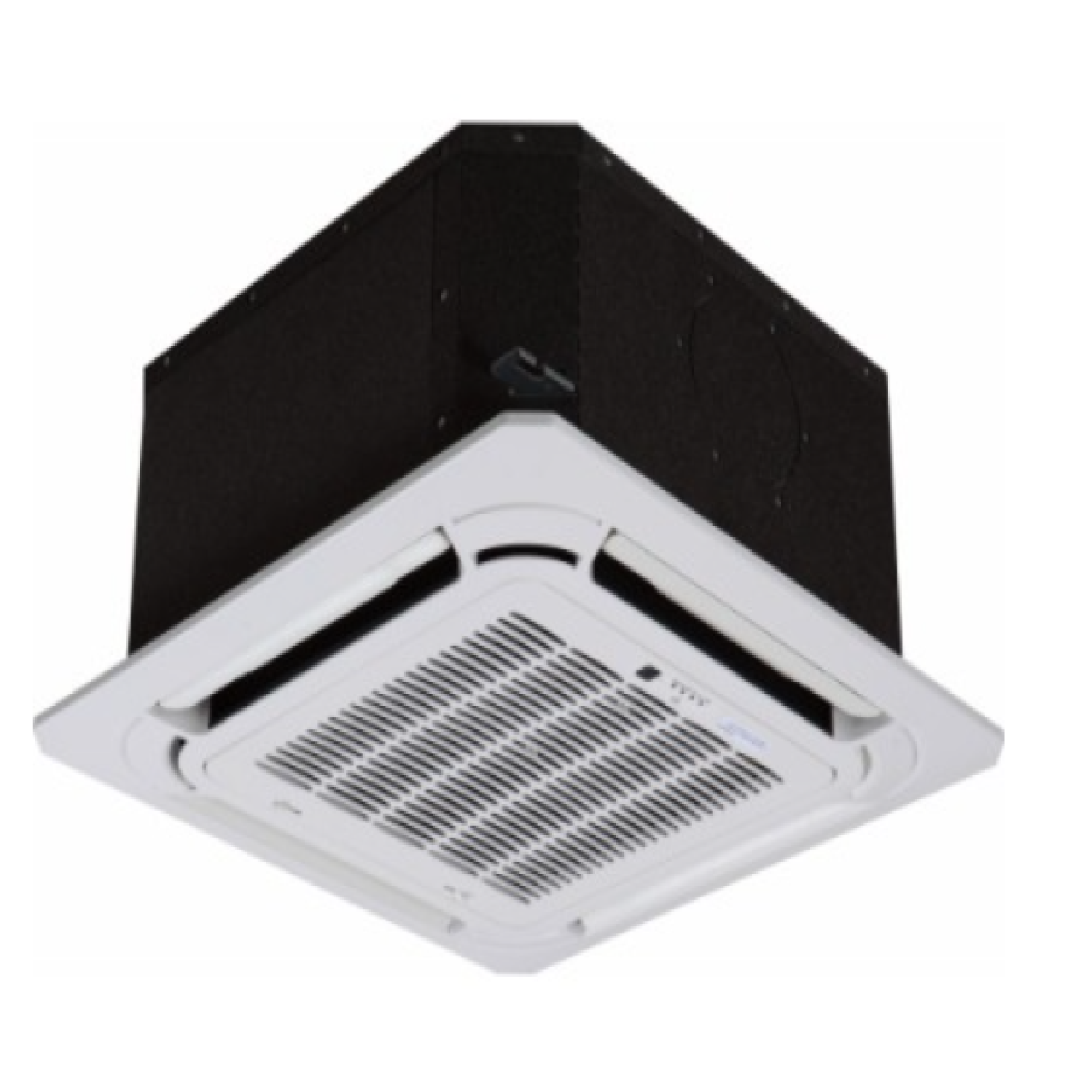

Midea DLFSCAH12XAK 12000 Btu Ductless Cassette Indoor Unit

Product Description

The MIDEA DLFSCAH12XAK is a 12,000 BTU/h ductless split cassette indoor unit rated at 18.5 SEER, designed for ceiling-recessed installation in residential and light commercial applications. Operating on 230 volts, this unit is part of the QuietComfort Series and is engineered to deliver quiet, efficient conditioned air distribution through a four-way cassette configuration. It pairs with a compatible outdoor condensing unit to form a complete mini-split heat pump system. Note that the decorative grille is not included and must be sourced separately. Installation requires coordination with a licensed HVAC contractor.

This cassette indoor unit is suited for single-zone ductless heat pump systems in spaces where ceiling-flush mounting is preferred over wall-mount or floor-mount alternatives. Typical applications include offices, hotel rooms, server rooms, retail spaces, and residential additions where duct runs are impractical. The unit mounts above a drop ceiling or within a framed ceiling cavity, distributing airflow in four directions for even coverage across the conditioned space.

Key Features

• 12,000 BTU/h cooling capacity at 18.5 SEER efficiency rating
• 230-volt operation for compatibility with standard single-phase electrical service
• Ceiling-recessed cassette design with four-way air distribution
• Part of the QuietComfort Series, optimized for low-noise operation
• Compatible with ductless split heat pump outdoor units as part of a complete DLS-HP system
• Grille sold separately, allowing installer flexibility in panel selection

Compatibility

Designed as an OEM-style indoor cassette component for use with a compatible MIDEA DLS-HP ductless split heat pump outdoor condensing unit. Verify outdoor unit compatibility and system capacity matching before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Power down and lock out the electrical supply before handling any wiring or refrigerant connections. Refrigerant line sets must be properly sized, leak-tested, and evacuated before system startup. The ceiling opening and support structure must be prepared to the cassette's dimensional requirements prior to unit placement.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• SEER Rating: 18.5
• Voltage: 230 volts
• Dimensions (L x W x H): 26 x 8 x 13 inches
• Weight: 42 pounds
• Series: QuietComfort
• Grille: Not included

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: DLFSCAH12XAK
