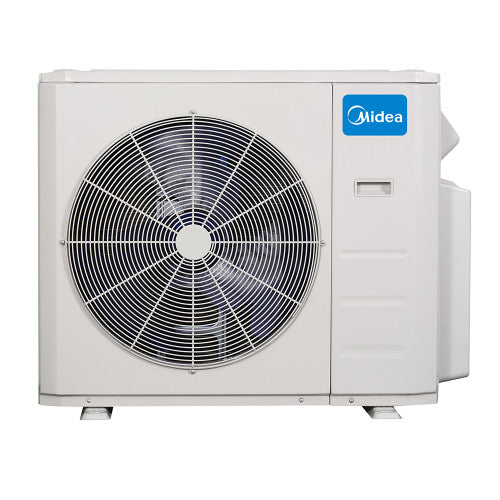

Midea DLCSRBH24AAK OD Heat Pmp Unit 24000 BTU

Product Description

The MIDEA DLCSRBH24AAK OD Heat Pmp Unit is designed for extra low temperature heating, maintaining up to 69% of rated capacity down to -22° F. It features stepless frequency adjustment for stable temperature and energy savings. Compatible with Midea and Carrier models, it ensures efficient and quiet operation.

• Extra Low Temperature Heating maintains heat output down to -22° F.
• Stepless Frequency Adjustment ensures stable room temperature.
• Quiet operation with sound levels as low as 54.6 dB(A).

Product Highlights

This unit provides reliable heating and cooling with features like auto-restart, refrigerant leakage detection, and aluminum golden hydrophilic pre-coated fins.

Product Information

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: DLCSRBH24AAK
• Country of Origin: USA

Technical Specifications

• MPN: DLCSRBH24AAK
• Brand: MIDEA
• Outdoor Model: DLCSRBH24AAK
• Voltage-Phase-Cycle: 208/230-1-60
• Power Supply: Indoor unit powered from outdoor unit
• MCA: 25
• MOCP - Fuse Rating: 35
• Cooling Outdoor DB Min - Max: -22~130 (-30~55)
• Heating Outdoor DB Min - Max: -22°~86° (-30°~30°)
• Total Piping Length: 164 (50)
• Lift (OD below ID): 82 (25)
• Pipe Connection Size - Liquid: 3/8 (9.52)
• Pipe Connection Size - Suction: 5/8 (16)
• Type: R410A
• Charge: 5.73 (2.6)
• Unit Width: 37.24 (946)
• Unit Height: 34.84 (885)
• Unit Depth: 16.14 (410)
• Airflow: 2,355
• Sound Pressure: 62.0
• Cooling System Tons: 2.0
• Cooling Rated Capacity: 24,000
• Cooling Cap. Range Min - Max: 7,295~26,600
• SEER: 21.5
• EER: 12.5
• Heating Rated Capacity (47° F): 26,000
• Heating Rated Capacity (17° F): 17,000
• Heating Maximum Capacity (17° F): 24,000
• Heating Maximum Capacity (5° F): 23,000
• Heating Cap. Range Min - Max: 9,500~27,400
• HSPF: 11.5
• COP (47° F): 2.99
• COP (17° F): 2.49
• COP (5° F): 1.79
