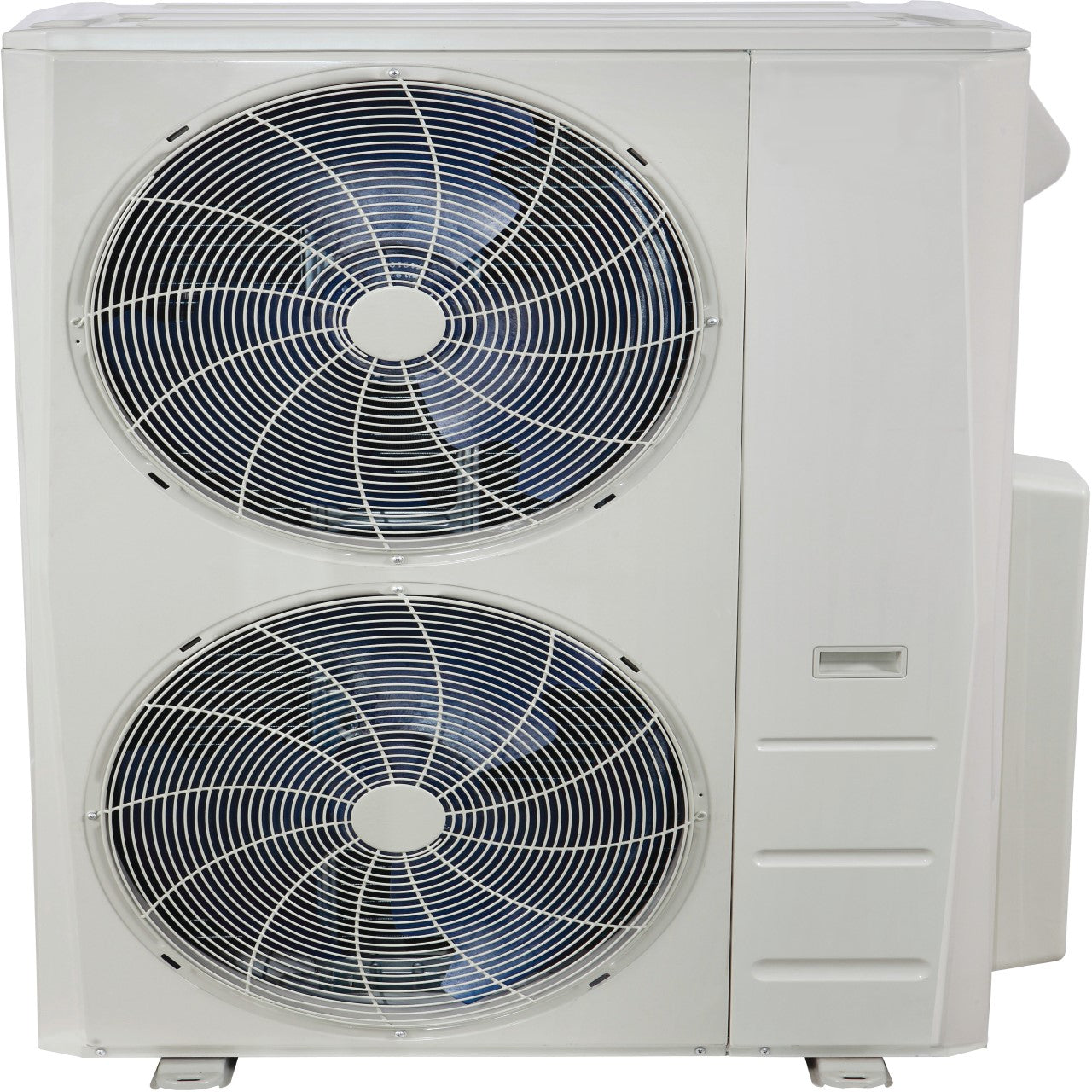

Midea DLCMRAH48EAK 48000 Btu/h Multi-zone Outdoor Unit

Product Description

The MIDEA DLCMRAH48EAK is a multi-zone ductless split outdoor condensing unit rated at 48000 BTU/h and designed to operate on a 230-volt supply. Part of the QuietComfort Series, this unit serves as the outdoor backbone for a multi-zone mini-split system, connecting to between two and five indoor air handlers through refrigerant line sets. It is installed by licensed HVAC technicians in residential and light commercial applications where zoned comfort control is required without traditional ductwork. The unit weighs 255 pounds and measures 43 inches wide by 58 inches tall by 3.67 inches deep, making crane or team-lift staging essential during rough-in.

This outdoor unit is suited for multi-zone installations in residential homes, condominiums, and light commercial spaces where independent temperature control across two to five zones is needed. It eliminates the need for duct runs while delivering heating and cooling capacity across a wide range of indoor unit configurations. Typical applications include whole-home retrofits, room additions, and new construction where ducted systems are not practical.

Key Features

• 48000 BTU/h capacity supports two to five simultaneous indoor zones
• 230-volt single-phase operation suits standard residential and light commercial electrical services
• QuietComfort Series design targets reduced operational noise at the outdoor unit
• Ductless configuration eliminates duct losses and simplifies installation in retrofit applications
• Heat pump operation provides both heating and cooling from a single outdoor unit

Compatibility

Designed as an OEM outdoor condensing unit for ductless split multi-zone systems accepting two to five indoor air handler connections within the MIDEA QuietComfort Series lineup.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before making any electrical or refrigerant connections. The unit should be mounted on a level pad or wall bracket rated for its 255-pound operating weight, with adequate clearance on all sides per manufacturer specifications. Follow all applicable local mechanical and electrical codes, including NEC requirements for disconnect sizing and grounding.

Technical Specifications

• Cooling and Heating Capacity: 48000 BTU/h
• Voltage: 230 volts
• Number of Zones: 2 to 5
• Unit Width: 43 inches
• Unit Height: 58 inches
• Unit Depth: 3.67 inches
• Weight: 255 pounds

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: DLCMRAH48EAK
