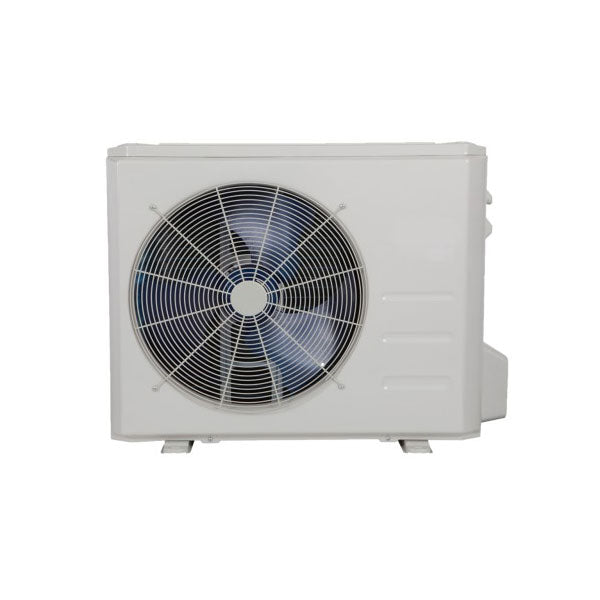

Midea DLCMHBH48EAK 48K Btu Multi-zone Heat Pump Outdoor Unit

Product Description

The MIDEA DLCMHBH48EAK is a multi-zone ductless split heat pump outdoor unit rated at 48000 BTU/h and designed for high-heat operation at 230 volts. Part of the QuietComfort Series, this unit serves as the outdoor condenser and compressor assembly in a variable-refrigerant multi-zone system, connecting to between two and five indoor air handlers. It is installed by licensed HVAC technicians in residential and light-commercial applications where ductless zoning is required. At 243 pounds, the unit is a substantial piece of equipment that requires proper structural mounting and refrigerant line routing to each zone.

This outdoor unit is suited for multi-zone ductless split installations where individual room or zone control is needed without duct infrastructure. Supporting two to five indoor zones, it accommodates a range of building layouts from single-family homes to small commercial spaces. The high-heat designation indicates the unit is engineered to maintain heating capacity at low outdoor ambient temperatures, making it appropriate for colder climates where a standard heat pump may lose efficiency. The QuietComfort Series designation reflects design attention to compressor and fan noise levels, which is relevant in noise-sensitive residential installations.

Key Features

• 48000 BTU/h capacity supports two to five simultaneous indoor zones
• High-heat rated for reliable heating performance in low ambient outdoor temperatures
• 230-volt single-phase power supply consistent with standard residential electrical service
• QuietComfort Series construction targets reduced compressor and fan noise levels
• Compact footprint at 16.375 inches deep by 43 inches wide by 34.84 inches tall

Compatibility

Designed for use with compatible MIDEA DLS-HP multi-zone ductless split indoor air handlers supporting two to five zone configurations. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for refrigerant handling. Power must be disconnected at the disconnect box before any wiring or refrigerant connections are made. The outdoor unit requires a level, structurally sound mounting pad or bracket capable of supporting the unit weight, and refrigerant line sets must be sized and routed per the manufacturer specifications and local mechanical codes. Do not operate the unit without verifying that all refrigerant line connections are leak-tested and that the system has been properly evacuated and charged.

Technical Specifications

• Capacity: 48000 BTU/h
• Voltage: 230 volts
• Number of Zones: 2 to 5
• Dimensions (L x W x H): 16.375 inches x 43 inches x 34.84 inches
• Weight: 243 pounds
• Series: QuietComfort
• System Type: Ductless Split Multi-Zone Heat Pump

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: DLCMHBH48EAK
