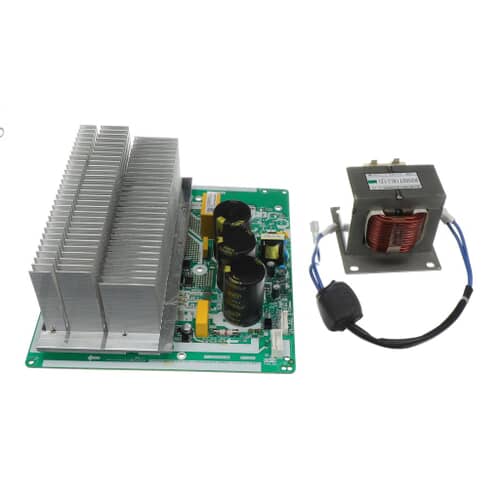

Midea 17222000a64034 Inverter Control Board

Product Description

The MIDEA 17222000a64034 is an inverter control board designed for use in MIDEA room air conditioning systems. This board manages the variable-speed compressor drive circuitry that defines inverter-technology operation, allowing the system to modulate capacity rather than cycle on and off at fixed speed. It is a direct replacement component installed by licensed HVAC technicians during compressor drive failure, board fault, or system performance diagnostics. The board sits at the core of the inverter drive assembly and must match the original electrical configuration of the unit to restore proper function.

This inverter control board is intended for MIDEA room air conditioning equipment that uses inverter-driven compressor technology. Typical installation scenarios include residential mini-split or through-the-wall room air conditioner service where the existing inverter board has failed, sustained damage, or triggered persistent fault codes that cannot be cleared through standard reset procedures. A qualified HVAC technician should confirm the fault is board-related before replacement.

Key Features

• OEM-specification inverter control board for MIDEA room air systems
• Supports variable-speed compressor drive operation characteristic of inverter technology
• Direct replacement design for failed or faulted inverter boards
• Engineered to restore factory performance and control logic

Compatibility

Designed as an OEM-style replacement inverter control board for MIDEA room air conditioning systems equipped with inverter-driven compressor technology.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with inverter-drive systems and high-voltage control circuitry. Disconnect all power to the unit at the disconnect and verify the absence of voltage before handling any internal components. Capacitors on inverter boards can retain a charge after power is removed — allow adequate discharge time and follow the manufacturer service documentation before touching board terminals. Work should comply with applicable local electrical codes and the NEC.

Technical Specifications

• Part Type: Inverter Control Board

Standard Information

• Brand: MIDEA
• Manufacturer Part Number: 17222000a64034
