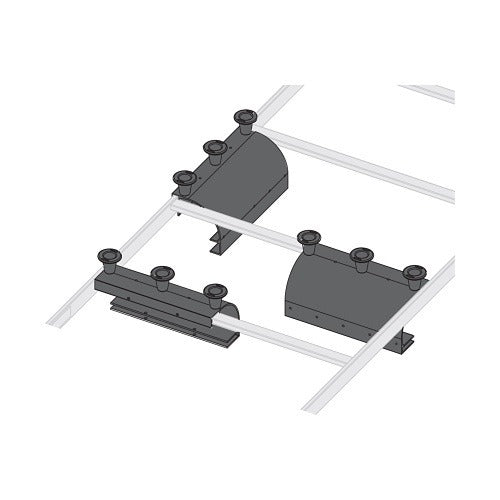

Middle Atlantic CLH-ED11-4 Cable Ladder End Drop

Product Description

The MIDDLE ATLANTIC - U.S. - LEGRAND CLH-ED11-4 is a cable ladder end drop designed to transition cables from a horizontal cable ladder down to rack equipment. This accessory provides a clean, organized routing path for cables at the end of a cable ladder run. The CLH-ED11-4 ships as a 4-piece set and includes 12 spools to guide and retain cables during their downward transition. It is sized for 11-inch cable ladder systems and is typically installed by low-voltage technicians and AV or data center rack integrators.

This end drop is used in structured cabling environments where cable ladders terminate at the end of a rack row or equipment bay. It supports orderly cable management in server rooms, broadcast facilities, network closets, and AV equipment installations. The 4-piece construction and integrated spool design allow cables to be dressed down the end of the ladder run without sharp bends or strain on cable jackets.

Key Features

• End drop configuration transitions cables from horizontal ladder to vertical rack equipment path
• Includes 12 spools for guided cable retention and bend radius protection
• 4-piece set provides complete end drop assembly
• Sized for 11-inch cable ladder systems
• Sold as a single unit (each)

Compatibility

Designed as an OEM-style rackmount accessory for use with 11-inch cable ladder systems in structured cabling and rack integration applications.

Installation Notes

Installation is typically performed by low-voltage technicians or structured cabling integrators. De-energize or power down any active equipment in the rack before dressing cables through the end drop assembly. Follow TIA-568 and manufacturer guidelines for minimum cable bend radius when routing cables through the spools. Ensure all ladder mounting hardware is secured before loading cables onto the end drop.
