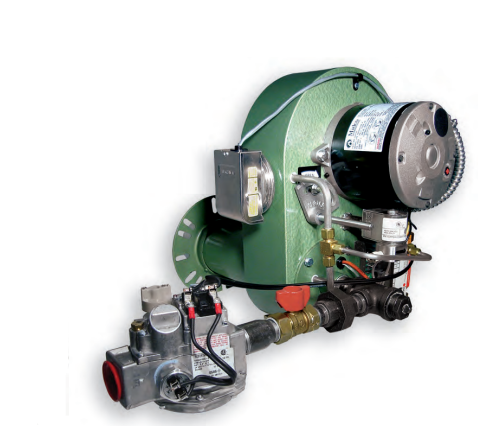

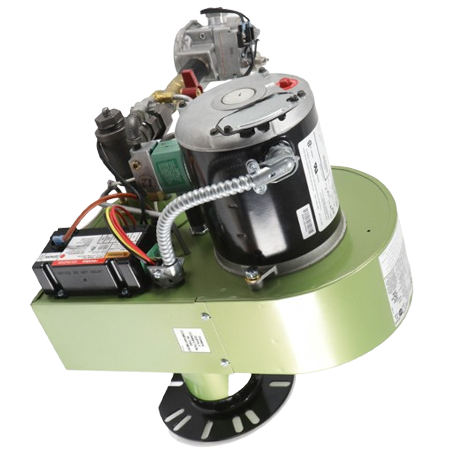

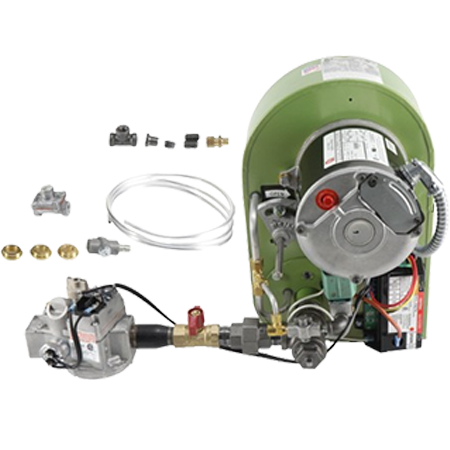

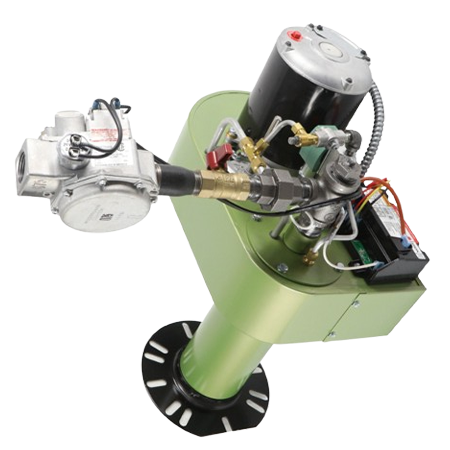

Midco RE4700BA Economite Burner Assembly 24V

Product Description

The Midco RE4700BA is an economite burner assembly that operates at 24V and features a retention head design that shapes the flame into a compact and efficient pattern. It has a 1" NPT connection size, 4" nozzle diameter, and 8" maximum nozzle insertion depth, with 230,000 BTU/hr minimum input, & 700,000 BTU/hr maximum input rating. Suitable for furnaces and boilers.

• Operates at 24V
• Retention head design for compact and efficient flame
• Reduces oxygen consumption during combustion

Product Highlights

The RE4700BA burner assembly features a bi-directional manifold, compact structure, and a universal mounting flange for simplified setup.

Product Information

Standard Information

• Brand: MIDCO
• Manufacturer Part Number: RE4700BA

Technical Specifications

• Maximum Input Rating: 700,000 BTU/Hr
• Minimum Input Rating: 230,000 BTU/hr
• Gas Connection Pipe Size: 1" NPT
• Nozzle Diameter: 4"
• Maximum Nozzle Insertion Depth: 8"
• Gas Pressure Required Natural or Propane: 7.0" to 14.0" W.C
• Motor Horsepower: 1/6 HP
• Primary Safety Voltage: 24V
• Air Delivery at Zero Draft: 125 SCFM
• Frequency: 50/60 Hz
• Ignition Control Module Voltage: 24V
