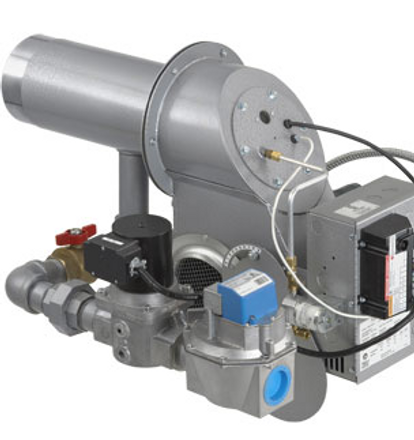

Midco International EC200 Economite Power Gas Burner

Product Description

The Midco International EC200 Economite Power Gas Burner is designed for various heating applications and can be adapted for original equipment manufacturer (OEM) requirements. This unit is built with compact dimensions and sheet metal construction for durability. The burner comes fully assembled and has undergone factory fire testing to ensure safety and reliability.

• Compact design with a universal mounting flange.
• Fully assembled and factory fire tested for quality assurance.
• Integrated direct spark ignition system with a pre-purge cycle.

Product Highlights

This gas burner is suitable for both natural gas and propane applications, equipped with a reliable safety system.

Product Information

Standard Information

• Brand: Midco
• Model: EC200

Technical Specifications

• Gas Type: Natural Gas (NG)
• Minimum Input Rating: 70,000 BTU/hr
• Maximum Input Rating: 200,000 BTU/hr
• Gas Connection Pipe Size: 3/4 inches NPT
• Gas Pressure Required: 6.0 to 14.0 inches W.C.
• Nozzle Diameter: 4.0 inches
• Maximum Nozzle Insertion Depth: 6.0 inches
• Motor HP: 1/22
• Certifications: U.L/C.U.L. Listed
• Primary Safety Voltage: 24V
• Flame Safety: Direct Spark Ignition with 100% shut-off and 30-second pre-purge
• Gas Valve: 1/2 NPT Main Automatic Gas Valve
• Electrical Supply: 120/1/60, 3 AMP
