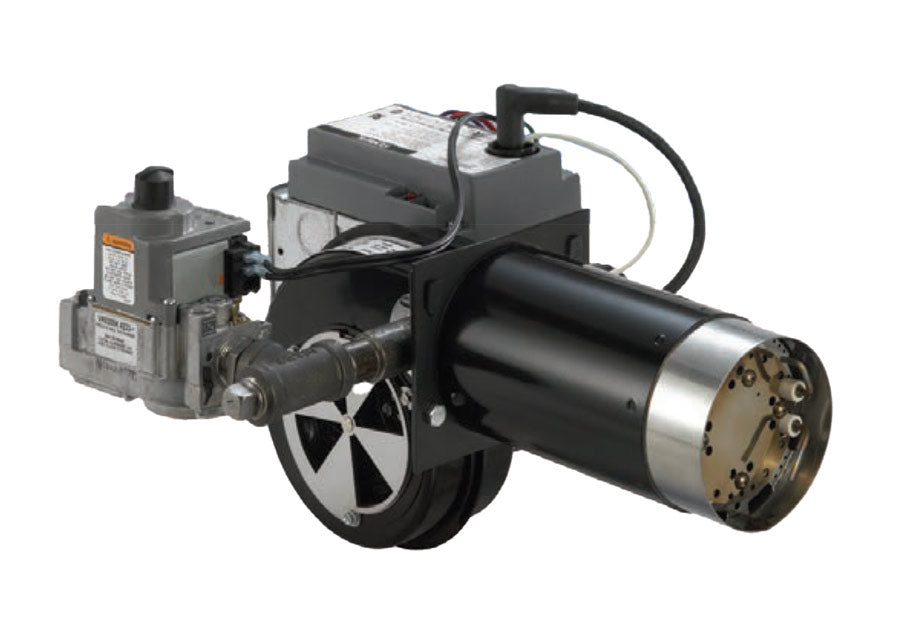

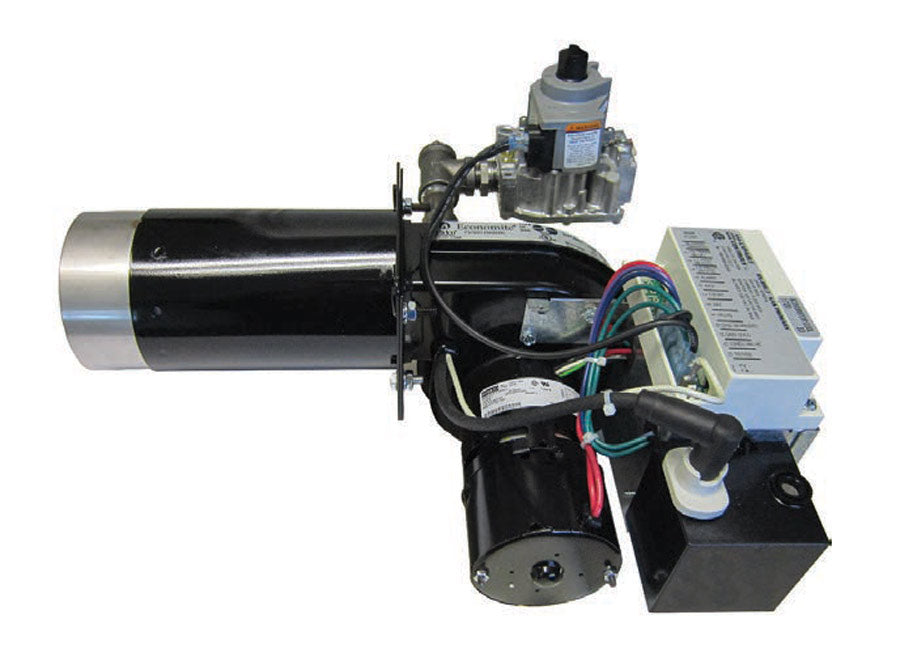

Midco International EC200 Economite Power Gas Burner

MIDCO INTERNATIONAL
SKU: EC200
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Midco International EC200 Economite Power Gas Burner is designed for various heating applications and can be adapted for original equipment manufacturer (OEM) requirements. This unit is built with compact dimensions and sheet metal construction for durability. The burner comes fully assembled and has undergone factory fire testing to ensure safety and reliability.

  • Compact design with a universal mounting flange.
  • Fully assembled and factory fire tested for quality assurance.
  • Integrated direct spark ignition system with a pre-purge cycle.

Product Highlights

This gas burner is suitable for both natural gas and propane applications, equipped with a reliable safety system.

Product Information

Standard Information

  • Brand: Midco
  • Model: EC200
Technical Specifications
Gas Type
Natural Gas (NG)
Minimum Input Rating
70,000 BTU/hr
Maximum Input Rating
200,000 BTU/hr
Gas Connection Pipe Size
3/4 inches NPT
Gas Pressure Required
6.0 to 14.0 inches W.C.
Nozzle Diameter
4.0 inches
Maximum Nozzle Insertion Depth
6.0 inches
Motor HP
1/22
Certifications
U.L/C.U.L. Listed
Primary Safety Voltage
24V
Flame Safety
Direct Spark Ignition with 100% shut-off and 30-second pre-purge
Gas Valve
1/2 NPT Main Automatic Gas Valve
Electrical Supply
120/1/60, 3 AMP
