Midco 6072150 Burner Control 120V J83-DS/F-35-60 REPLACEMENT 6072100

Product Description

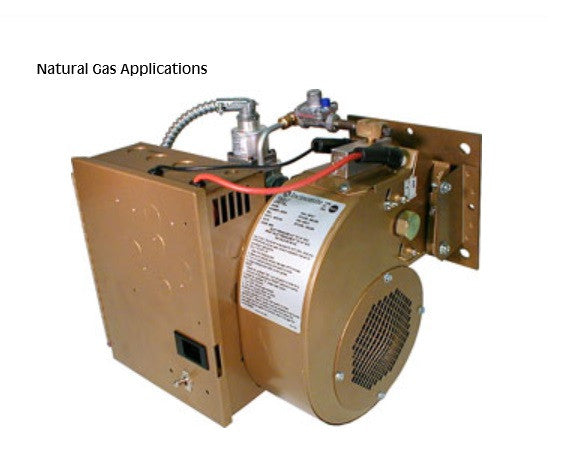

The MIDCO 6072150 is a 120V gas burner control, model J83-DS/F-35-60, and a direct replacement for part number 6072100. This burner control features direct spark ignition and continuous monitoring by a solid state system that verifies flame or automatically locks out the burner. It is designed for natural gas and propane applications.

• Direct main-flame spark ignition
• Permanently Lubricated Motors
• Automatic Self Cooling System

Product Highlights

The Midco 6072150 burner control offers reliable ignition and flame monitoring for gas burner systems. It features a self-cooling system and is designed for easy installation with a reversible mounting flange.

Product Information

Standard Information

• Brand: MIDCO
• Manufacturer Part Number: 6072150

Technical Specifications

• Part No.: 6072150
• Category: Burner Control
• Item Number: 6072150
• Brand: Midco International
• Controller: F-35-60
• Motors: Permanently Lubricated
• Cooling System: Automatic Self Cooling System
• Mounting Flange: Reversible
• Ignition: Direct main-flame spark ignition
• Input Capacity MBH Min: 100,000 BTU/Hr
• Input Capacity MBH Max: 800,000 BTU/Hr
• Gas Pressure Required Natural: 5.5-14.0" W.C.
• Gas Pressure Required Propane: 8.0-14.0" W.C.
• Electric: 120/1/60: 3 Amps. Max. Running
• Motor Horsepower: 1/40
• Input Voltage: 120V
