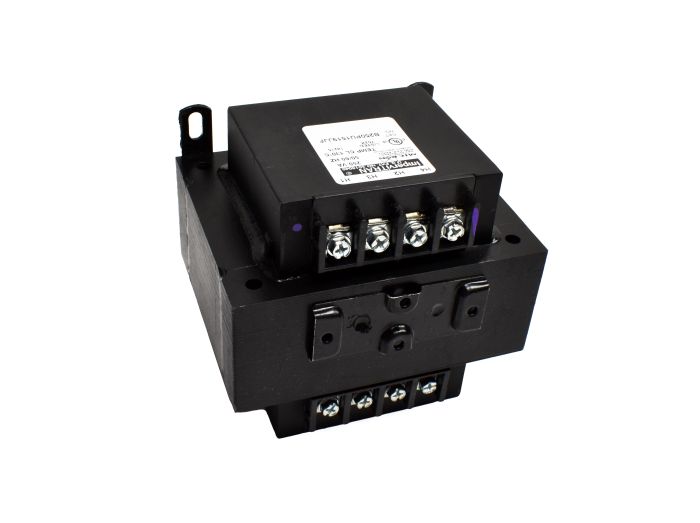

Micron B250PU1519JJF ImperviTRAN Series Transformer 250 VA

Product Description

The Micron B250PU1519JJF ImperviTRAN series transformer is an epoxy encapsulated control transformer designed for reliability in various applications. It features corrosion-protected windings and solder for extended durability. Molded-in terminals and barriers provide an integrated solution for secure connections. This transformer meets both UL and cUL standards and offers primary voltage options of 240 volts and 480 volts, with secondary voltage outputs of 120 volts and 240 volts.

• Epoxy encapsulated coil
• Corrosion protected windings and solder
• Molded in terminals and barriers

Product Highlights

The ImperviTRAN series transformer is suitable for industrial and commercial use, providing a dependable power source for control equipment.

Product Information

Standard Information

• Manufacturer Part Number: B250PU1519JJF
• Manufacturer: Micron Industries

Technical Specifications

• Product Series: ImperviTRAN
• Description: ImperviTRAN 250 VA, 240x480 Primary, 120x240 Secondary
• Phase: 1
• Type: Control
• VA Rating: 250 VA
• Primary Voltage: 240 V, 480 V
• Secondary Voltage: 120 V, 240 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Termination: Integrally molded terminal blocks
• Cover Included: Optional
• Insulation Class: Class B
• Approvals: UL
• Condition: New
• Type of Transformer: Control Power
• Warranty: 3 Years
