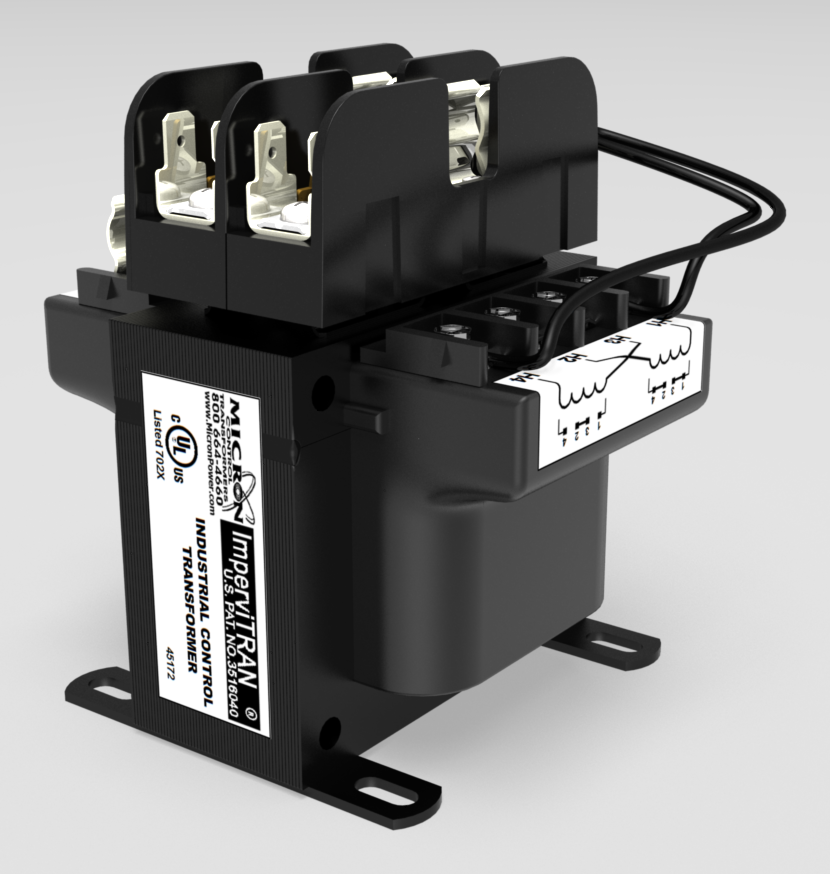

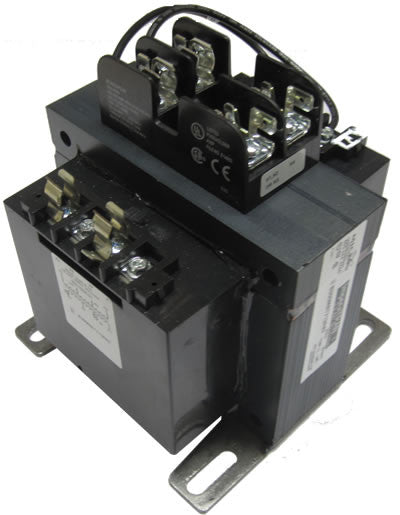

Micron B250LP7RBF ImperviTRAN Series 250VA Control Power Transformer

Product Description

The Micron B250LP7RBF ImperviTRAN series is the most accepted industrial control circuit transformer in the industry. With epoxy encapsulated coils, molded-in terminals, and phil-slot screws, it offers a reliable and robust solution. Suitable for industrial and commercial equipment manufacturers.

• Epoxy encapsulated coils
• Molded-in terminals and phil-slot screws

Product Highlights

This control power transformer features a clean design and tough construction, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: MICRON
• Manufacturer Part Number: B250LP7RBF

Technical Specifications

• Phase: 1
• Primary Voltage: 120x240
• Series: ImperviTRAN
• Type of Transformer: Control Power
• VA: 250VA
• Manufacturer Part Number: B250LP7RBF
• Manufacturer: Micron Industries
• Product Series: ImperviTRAN
• Family Series: Micron Industries Transformers, ImperviTRAN Series
• Description: ImperviTRAN 250 VA, 1P, 120x240 Primary, 24 Secondary
• VA Rating: 250 VA
• Secondary Voltage: 24 V
• Enclosed: Encapsulated
• Primary Fuseholder: Included
• Secondary Fuseholder: Optional
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Insulation Class: Class B
• Approvals: UL
• Temperature Class: 130C
• Terminals: 4
• Triple rate/Standard/Universal: Standard
• Hz: 50/60
• Mounting Type: Panel
• Product Certifications: UL/cUL Listed File #E46323
• Winding Material: Copper
