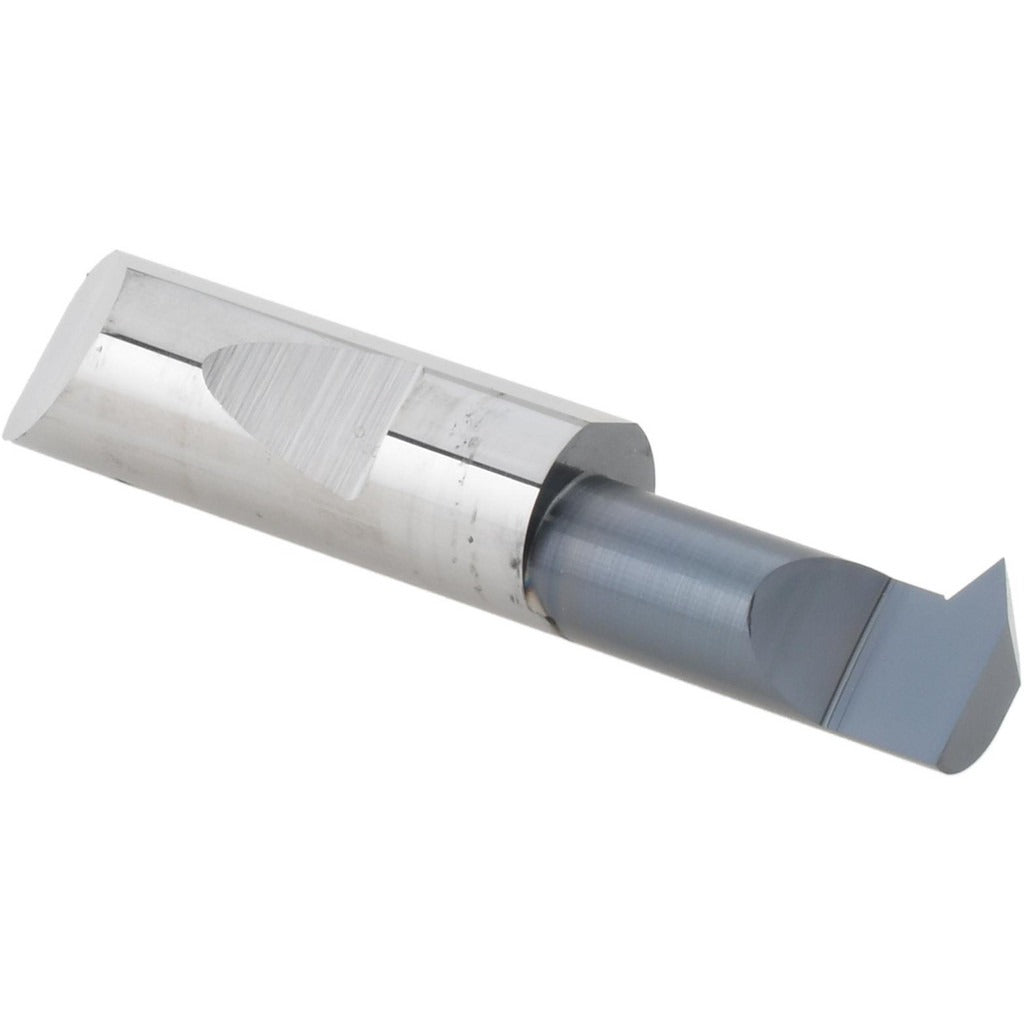

Micro 100 QIT-360750X Single Point Threading Tool Internal

Product Description

The MICRO 100 QIT-360750X is a solid carbide, internal single point threading tool designed for cutting threads on CNC lathes and turning centers. It handles a minimum threading diameter of 0.36 inches with a cutting depth of 0.75 inches, and covers a thread range of 11 to 28 TPI at a 60-degree profile angle. The 3/8-inch shank and 2-inch overall length make it a compact, rigid tool suited for small-bore internal threading operations. The AlTiN coating provides heat resistance and extended tool life in ferrous and hard alloy workpieces. Machinists and CNC operators install this tool in standard boring bar-style holders.

This tool is used in precision internal threading applications on CNC lathes, turning centers, and live-tool mills. It is appropriate for both production and job-shop environments where consistent thread form and tight tolerances are required. The 60-degree profile angle covers the most common unified and metric thread forms. The 0.085-inch projection from edge supports access to shallow or closely spaced features. No coolant-through capability is present, so flood or mist coolant is applied externally during operation.

Key Features

• Solid carbide construction for rigidity and dimensional stability in small-bore threading
• AlTiN coating for improved heat resistance and tool life in ferrous and hard alloy materials
• 60-degree profile angle covers unified (UN) and standard metric thread forms
• 11 to 28 TPI range accommodates a wide variety of common thread pitches
• 0.75-inch cutting depth supports full thread engagement in typical bore depths
• Compact 2-inch overall length minimizes overhang and vibration in tight setups

Compatibility

Designed for use in standard 3/8-inch shank boring bar holders on CNC lathes and turning centers capable of single point threading cycles with a minimum bore diameter of 0.36 inches.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the machine spindle before inserting or removing the tool from its holder. Secure the shank firmly in a compatible 3/8-inch tool holder and verify runout before beginning a threading pass. Apply flood or mist coolant externally during cutting, as this tool does not support coolant-through delivery.
