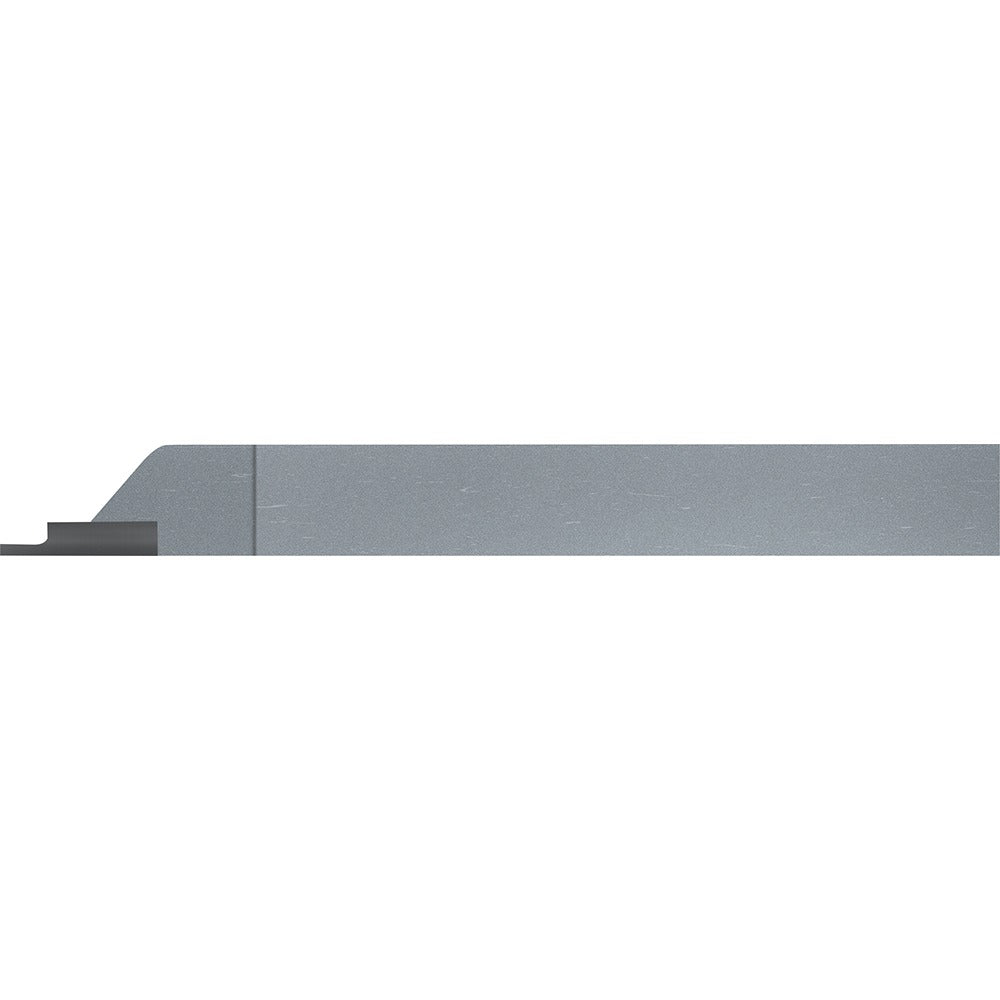

Micro 100 GS-096002 Grooving Tool Bit 3/8 Shank Solid Carbide

Product Description

The MICRO 100 GS-096002 is a single-point GS-style grooving tool bit designed for precision grooving operations on lathes and turning centers. Built from solid carbide, it delivers the hardness and wear resistance needed for consistent, repeatable cuts in steel, stainless, aluminum, and similar materials. The shank measures 3/8 inch in height and 3/8 inch in width, with an overall length of 3 inches. The tip measures 0.330 inches in length and 0.096 inches in width. Neutral cutting direction makes it suitable for straight-in grooving applications. Machinists and toolroom technicians are the primary users of this bit in production and job-shop environments.

This tool bit fits standard GS-style grooving applications on manual and CNC lathes. It is well suited for external grooving, parting operations, and undercut work where a narrow, precise tip width is required. The 3/8 x 3/8 inch shank fits common tool holders designed for that shank size. Typical applications include groove-to-depth work on round stock in both prototype and production runs. The solid carbide construction handles interrupted cuts and harder workpiece materials better than high-speed steel alternatives.

Key Features

• Solid carbide tip for superior hardness and extended tool life
• Neutral cutting direction for straight-in grooving
• 3/8 x 3/8 inch shank fits standard GS-style tool holders
• 0.096 inch tip width enables narrow, precise groove geometry
• 3 inch overall length suits common lathe tool post setups
• GS-style profile for compatibility with matching boring bar and holder systems

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for GS-style grooving tool holders accepting a 3/8 x 3/8 inch shank.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before mounting, ensure the lathe or turning center is fully powered down and the spindle is locked. Secure the tool bit firmly in a matched GS-style holder, confirming the shank seats fully without overhang beyond accepted practice. Verify tip alignment with the workpiece centerline before initiating a cut.
