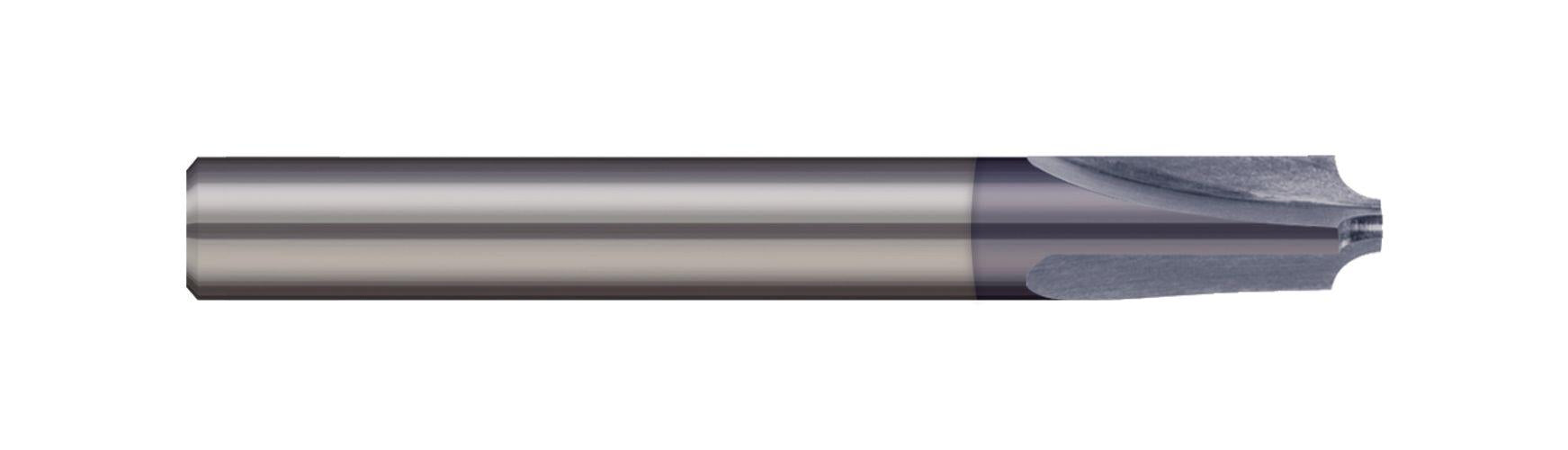

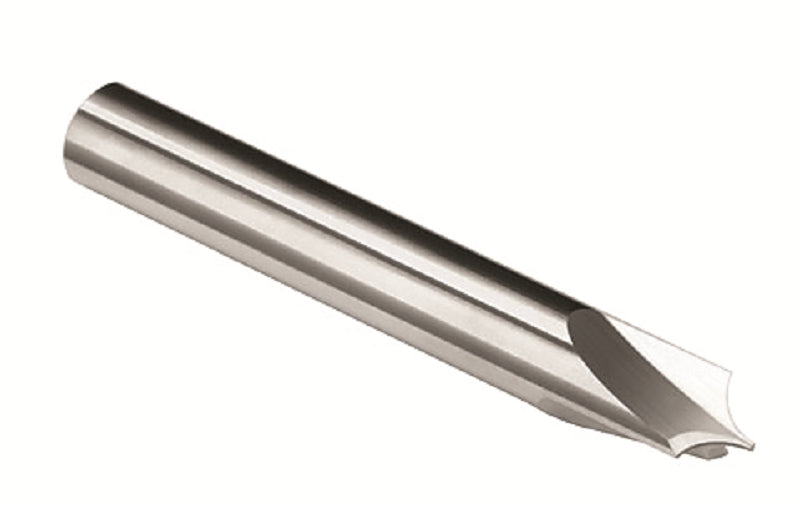

Micro 100 CRE-625-203 Corner Rounding End Mill 0.625 in Dia 3 Flutes

Product Description

The Micro 100 CRE-625-203 is a corner rounding end mill designed for precision milling. It features a diameter of zero point six two five inches and is crafted from solid carbide. This tool is ideal for creating radius cuts on various materials with minimal burr formation.

• Three helical flutes enhance cutting efficiency
• Double-ended design for extended tool life
• Uncoated surface for versatility in machining

Product Highlights

This end mill is effective for milling corner radii and features a cylindrical shank for stability during operation.

Product Information

Standard Information

• Brand: Micro 100
• Part Number: CRE-625-203

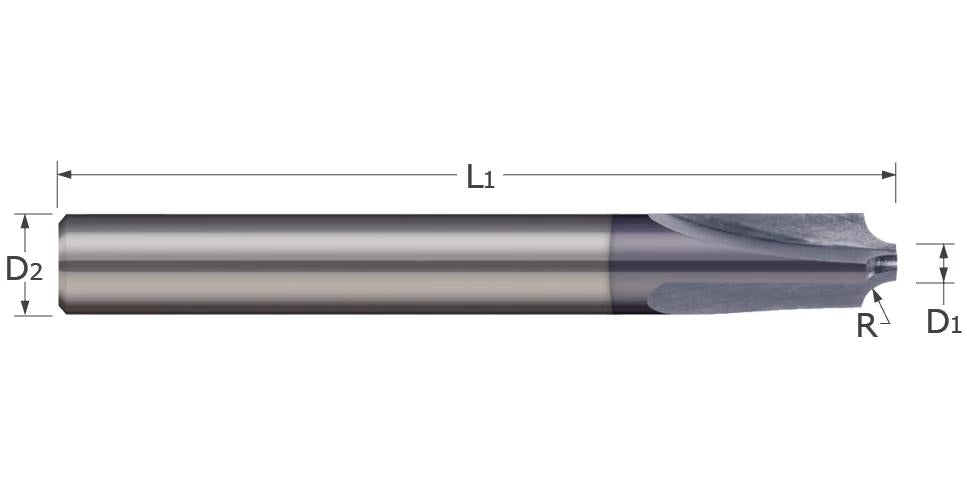

Technical Specifications

• Material: Solid Carbide
• Diameter: 0.625 in
• Shank Diameter: 0.625 in
• Overall Length: 3.5 in
• Length of Cut: 0.2131 in
• Radius: 0.2031 in
• Number of Flutes: 3
• Cutting Direction: Right Hand
