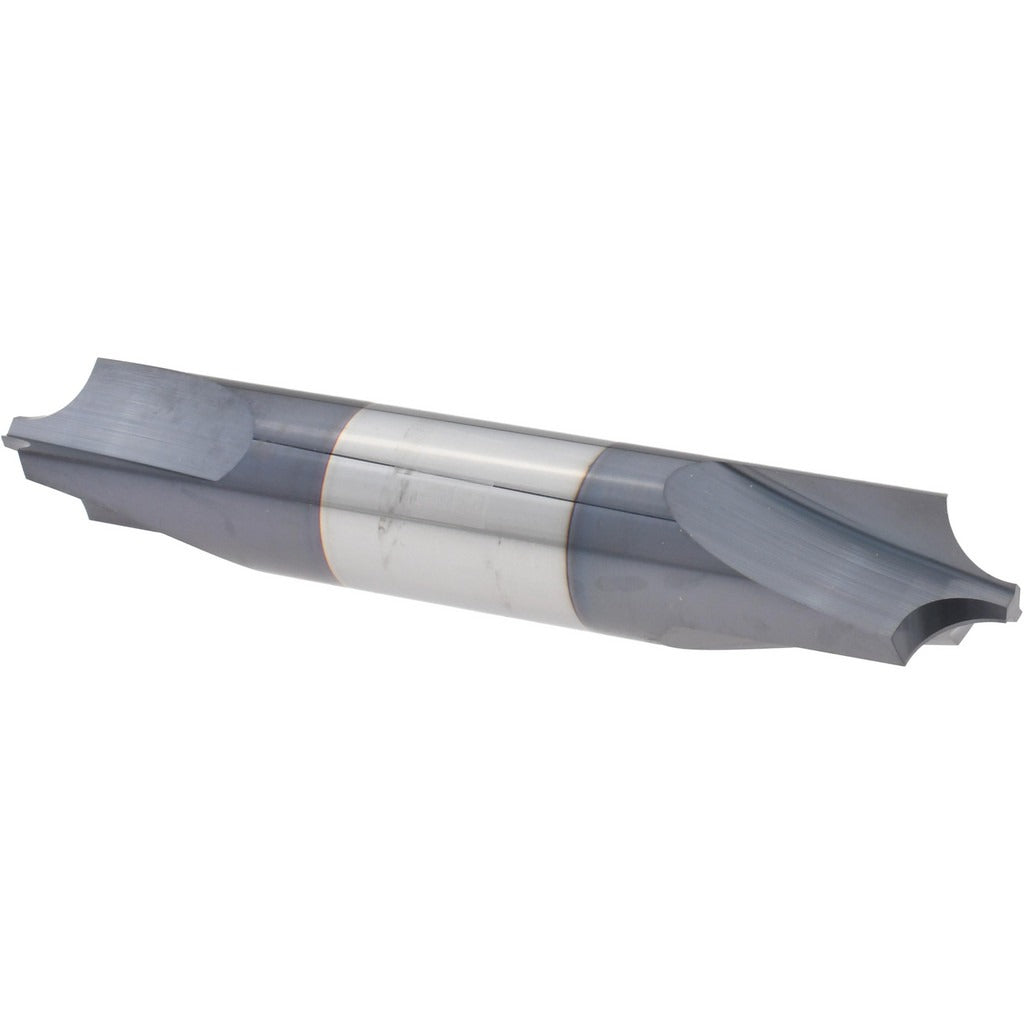

Micro 100 CRE-500-187X Corner Rounding End Mill 3 Flute

Product Description

The MICRO 100 CRE-500-187X is a double-ended, solid carbide corner rounding end mill designed to produce consistent radius profiles on ferrous and non-ferrous workpieces. It carries a 3/16 inch radius and a 1/2 inch mill diameter across three right-hand flutes, delivering smooth, burr-free corner geometry in a single pass. The AlTiN coating improves heat resistance and extends tool life in high-speed and dry-cutting applications. With a 3 inch overall length and a 1/2 inch shank diameter, the tool mounts securely in standard end mill holders and collet chucks. Machinists and toolmakers in production and job-shop environments are the primary users.

This end mill is suited for CNC machining centers and manual mills running steel, stainless, cast iron, titanium, and high-temp alloys where edge-breaking and radius profiling are required. The double-end configuration extends usable tool life, making it practical for high-volume production runs. The right-hand cutting and right-hand flute direction are consistent with conventional milling setups. The 0.12 inch tip diameter accommodates tight corner geometries where larger tools cannot reach.

Key Features

• Double-ended design doubles usable tool life per unit
• AlTiN coating provides heat and wear resistance for dry and high-speed cutting
• Solid carbide construction maintains rigidity and edge integrity under load
• 3/16 inch radius produces consistent corner profiles in a single pass
• Right-hand cut and right-hand flute direction for conventional milling compatibility
• 0.12 inch tip diameter allows profiling in tight-clearance corners

Compatibility

Designed for use in standard 1/2 inch end mill holders, collet chucks, and shrink-fit toolholders on CNC machining centers and conventional knee mills performing corner rounding and radius profiling operations.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully within the toolholder to the minimum recommended insertion depth before torquing the retention mechanism. Confirm spindle RPM and feed rate are within the tool manufacturer's recommended parameters for the workpiece material before starting the cut. Inspect the cutting edges on both ends before use and discard the tool if chipping or edge breakdown is visible.
