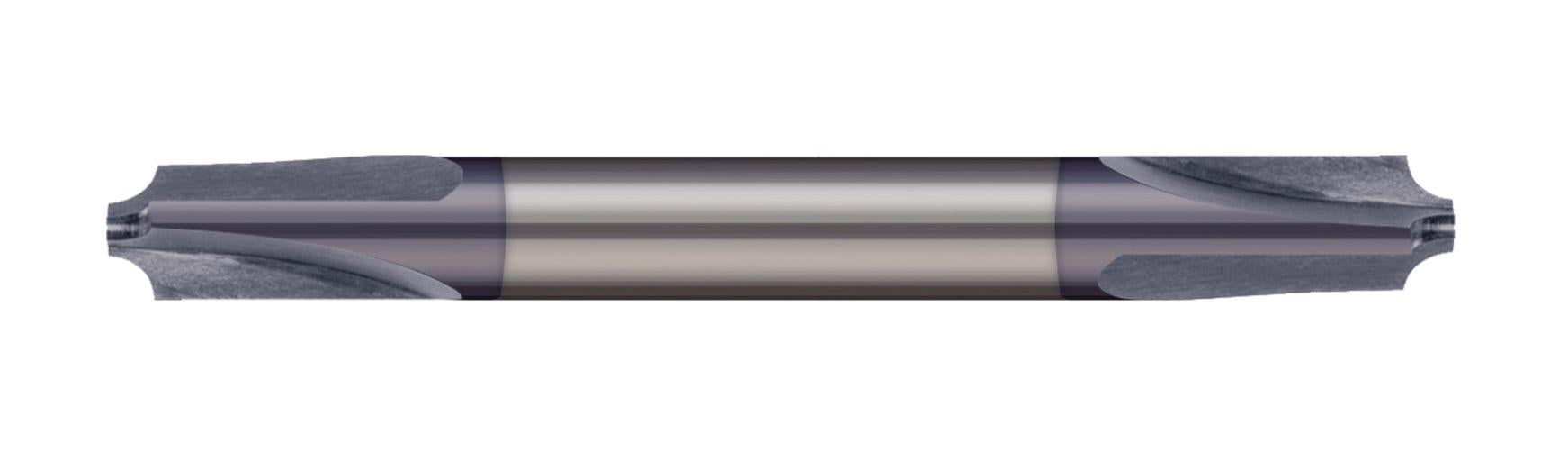

Micro 100 CRE-312-125 M100 1/8R 5/16x2.1/2 3FDE CARB CORNER RD MILL TIP.060

Product Description

The Micro 100 CRE-312-125 is a corner rounding end mill designed for milling corners with precision. Made from solid carbide, this milling tool is durable and effective. It features a diameter of zero point three one two five inches and an overall length of two point five inches.

• Three flutes for efficient material removal
• Uncoated finish for versatility in various materials
• Double-ended design for extended usage

Product Highlights

This end mill is ideal for creating corner radii in various materials. It is particularly useful in applications where a smooth finish and precision are required.

Product Information

Standard Information

• Brand: Micro 100
• Part Number: CRE-312-125

Technical Specifications

• Material: Solid carbide
• Coating: Uncoated
• Diameter: 0.3125 inches
• Shank Diameter: 0.3125 inches
• Overall Length: 2.5000 inches
• Radius: 0.1250 inches
• Flutes: 3
• Tip Diameter: 0.0600 inches
