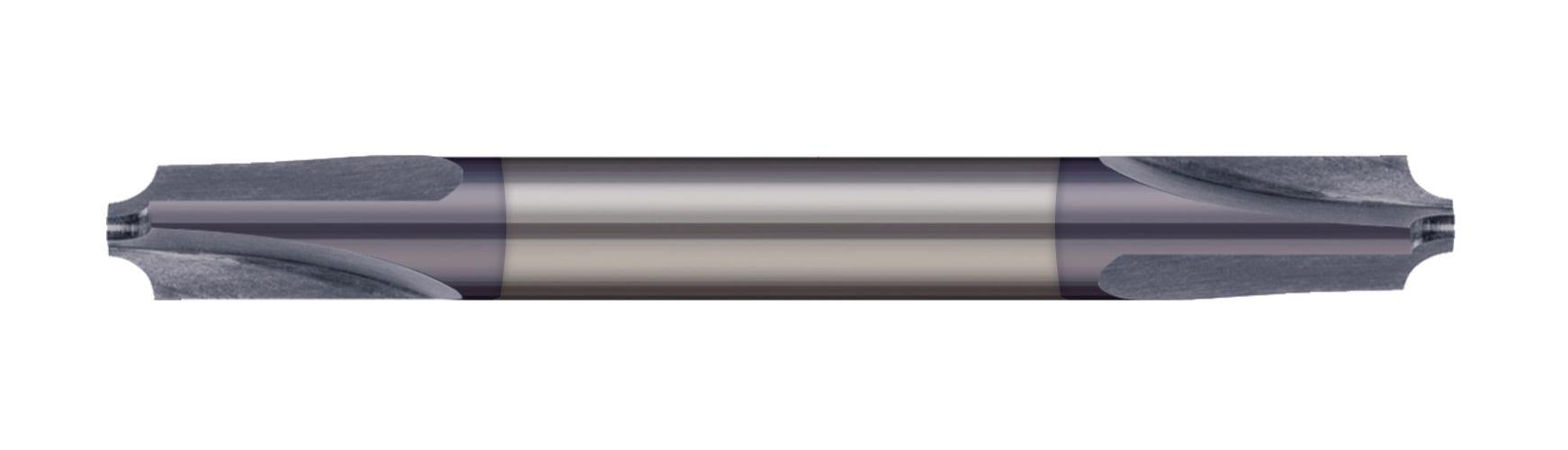

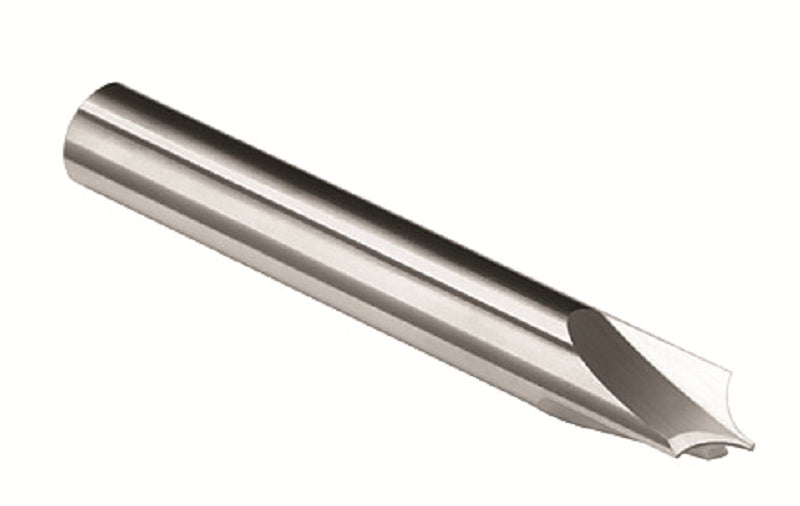

Micro 100 CRE-312-109 Corner Rounding End Mill 0.3125 in Diameter Cutter

Product Description

The Micro 100 CRE-312-109 Corner Rounding End Mill is a solid carbide tool designed for precision milling tasks. With a cutter diameter of zero point three one two five inches and an overall length of two point five inches, this end mill is effective for creating rounded edges on metal parts.

• Double-ended design for extended cutting capabilities
• Three flutes for efficient chip removal
• Uncoated surface for versatility in various applications

Product Highlights

This corner rounding end mill is intended for those who require accuracy in milling operations. It is suitable for use in milling machines and is ideal for machining edges to prevent sharp corners.

Product Information

Standard Information

• Brand: Micro 100
• Part Number: CRE-312-109

Technical Specifications

• Material: Solid Carbide
• Coating: Uncoated
• Diameter: 0.3125 inches (7.938 mm)
• Shank Diameter: 0.312 inches (7.938 mm)
• Overall Length: 2.5 inches (63.500 mm)
• Flutes: 3
• Radius: 0.1094 inches
• Tip Diameter: 0.0600 inches (1.524 mm)
