Micro 100 CRE-250-078 M100 5/64R 1/4x2.1/2 3F D/E Carb Corner Rd Mill

Product Description

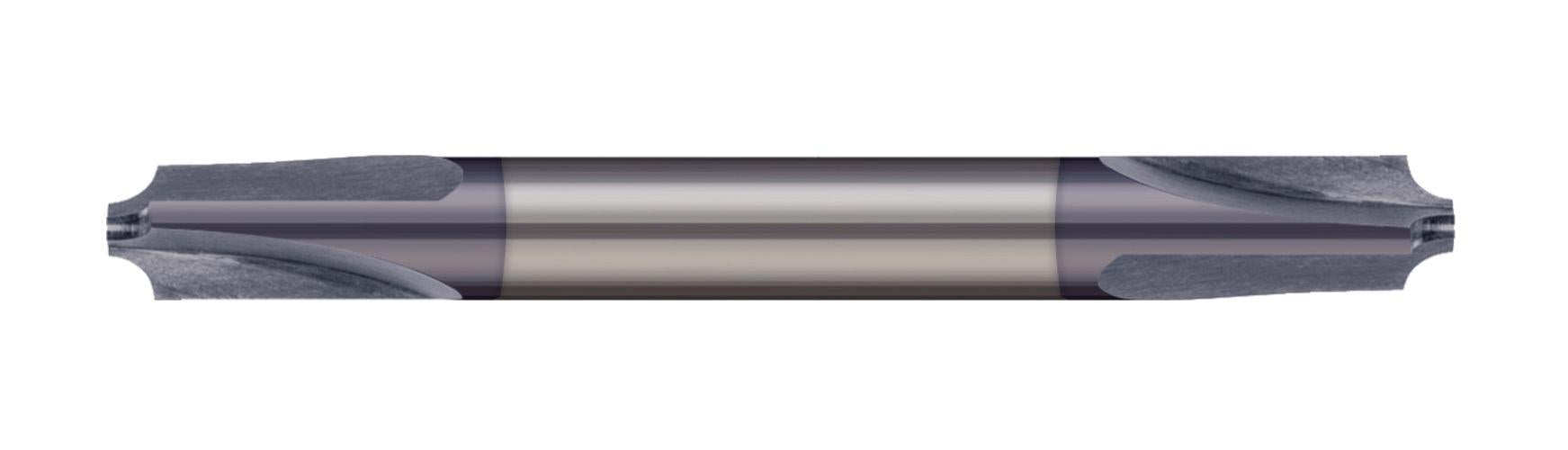

The Micro 100 CRE-250-078 is a corner rounding end mill made from solid carbide. This tool is designed specifically for milling corner radii into workpieces. It features three flutes and a double-ended design for enhanced versatility. It has a cutter diameter of one quarter inch and an overall length of two and a half inches.

• Cutter Diameter: 0.2500 inches
• Shank Diameter: 0.2500 inches
• Number of Flutes: 3

Product Highlights

This milling tool is useful in various machining applications. It provides a clean and precise finish on rounded edges.

Product Information

Standard Information

• Brand: Micro 100
• Material: Carbide

Technical Specifications

• Diameter: 0.2500 inches
• Shank Diameter: 0.2500 inches
• Overall Length: 2.5000 inches
• Radius: 0.0781 inches
• Tip Diameter: 0.0600 inches
• Double Ended: Yes
