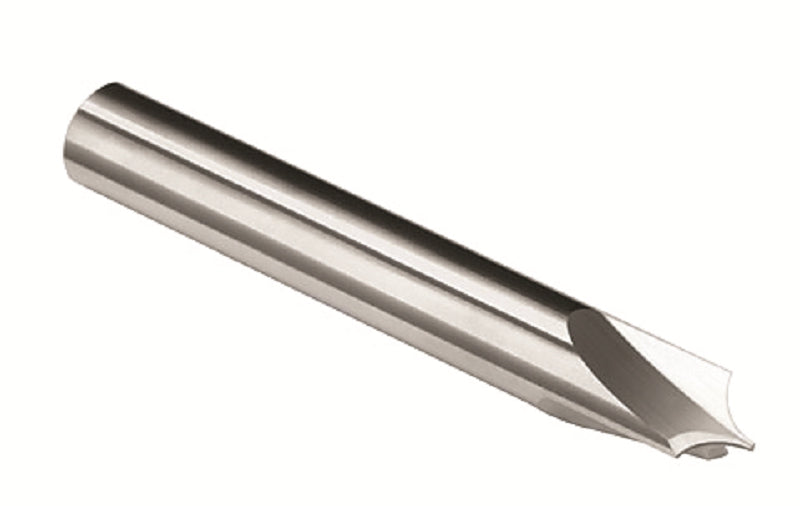

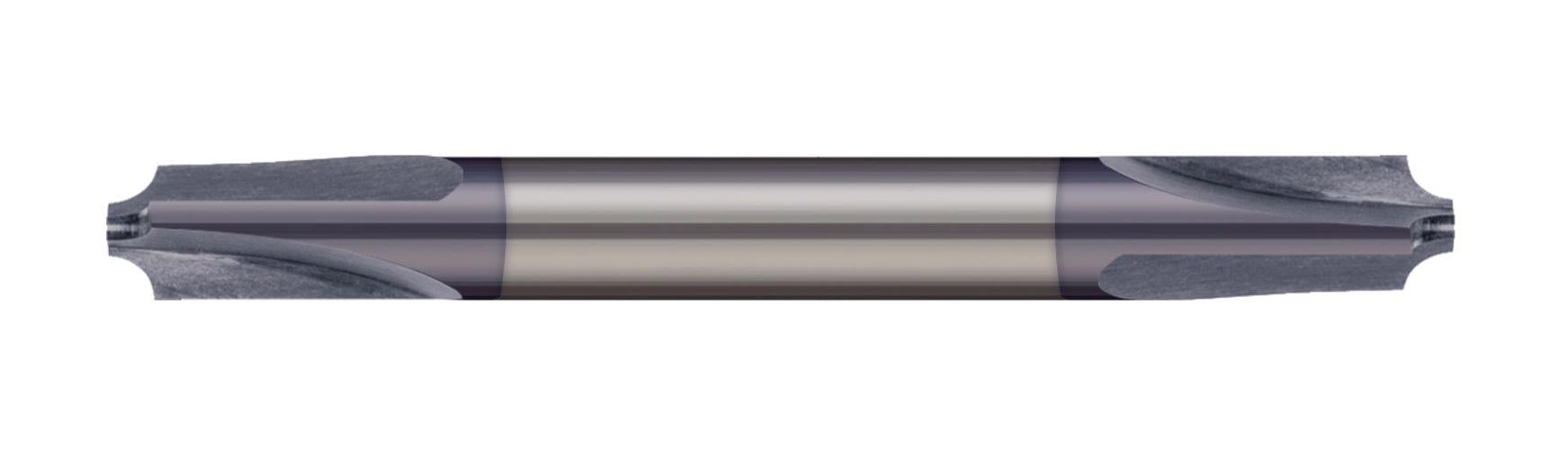

Micro 100 CRE-187-040 M100 .040R 3/16x2 3F Carb Corner Round Dbl End Mill

Product Description

The Micro 100 CRE-187-040 is a corner rounding double-ended end mill designed for precision milling tasks. This tool features a diameter of zero point one eight seven five inches and an overall length of two inches, making it suitable for a variety of milling applications.

• Three flutes for efficient chip removal
• Uncoated solid carbide construction
• Radius of zero point zero four inches for smoother contours

Product Highlights

This corner rounding end mill is designed to mill corner radii into parts with minimal steps and burrs.

Product Information

Standard Information

• Brand: Micro 100
• Part Number: CRE-187-040

Technical Specifications

• Diameter: 0.1875 inches (4.763 mm)
• Shank Diameter: 0.1875 inches (4.763 mm)
• Overall Length: 2.0000 inches (50.800 mm)
• Radius: 0.0400 inches
• Flutes: 3
• Tip Diameter: 0.0600 inches (1.524 mm)
• Double Ended: Yes
