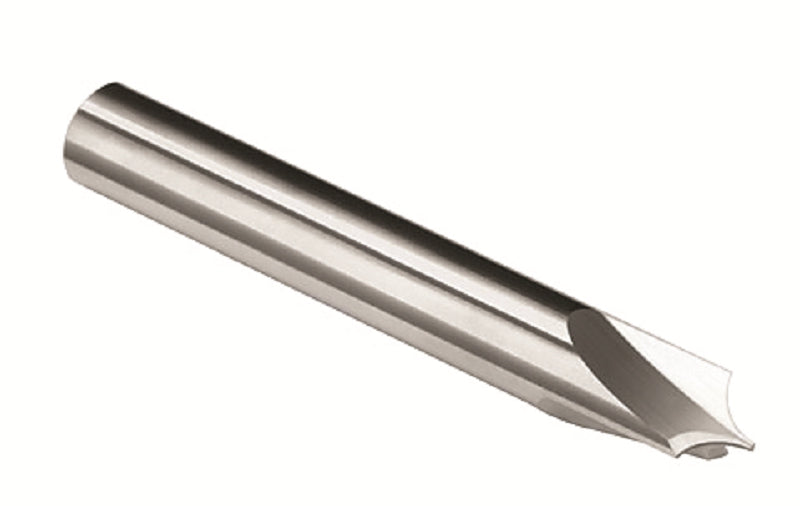

Micro 100 CRE-125-020 M100 R.020 1/8x2 3F D/E Carb Corner Round Mill .060 Tip

Product Description

The Micro 100 CRE-125-020 is a corner rounding end mill designed for precision milling. This product features a diameter of one-eighth inch and is constructed from carbide for durability. The overall length is two inches, with a tip size of 0.060 inches. This double-ended end mill comes with three flutes, making it suitable for high-performance applications.

• Diameter: 0.125 inches (3.175 mm)
• Overall Length: 2.000 inches (50.800 mm)
• Double Ended: Yes

Product Highlights

This tool is ideal for creating rounded edges on machined parts, ensuring smooth finishes. Its reliable carbide material supports various milling tasks, making it a versatile addition to your toolkit.

Product Information

Standard Information

• Brand: Micro 100
• Material: Carbide

Technical Specifications

• Coating: Uncoated
• Diameter: 0.125 inches (1/8 inch)
• Shank Diameter: 0.125 inches (1/8 inch)
• Overall Length: 2.000 inches
• Radius: 0.020 inches
• Flutes: 3
• Tip Diameter: 0.060 inches
