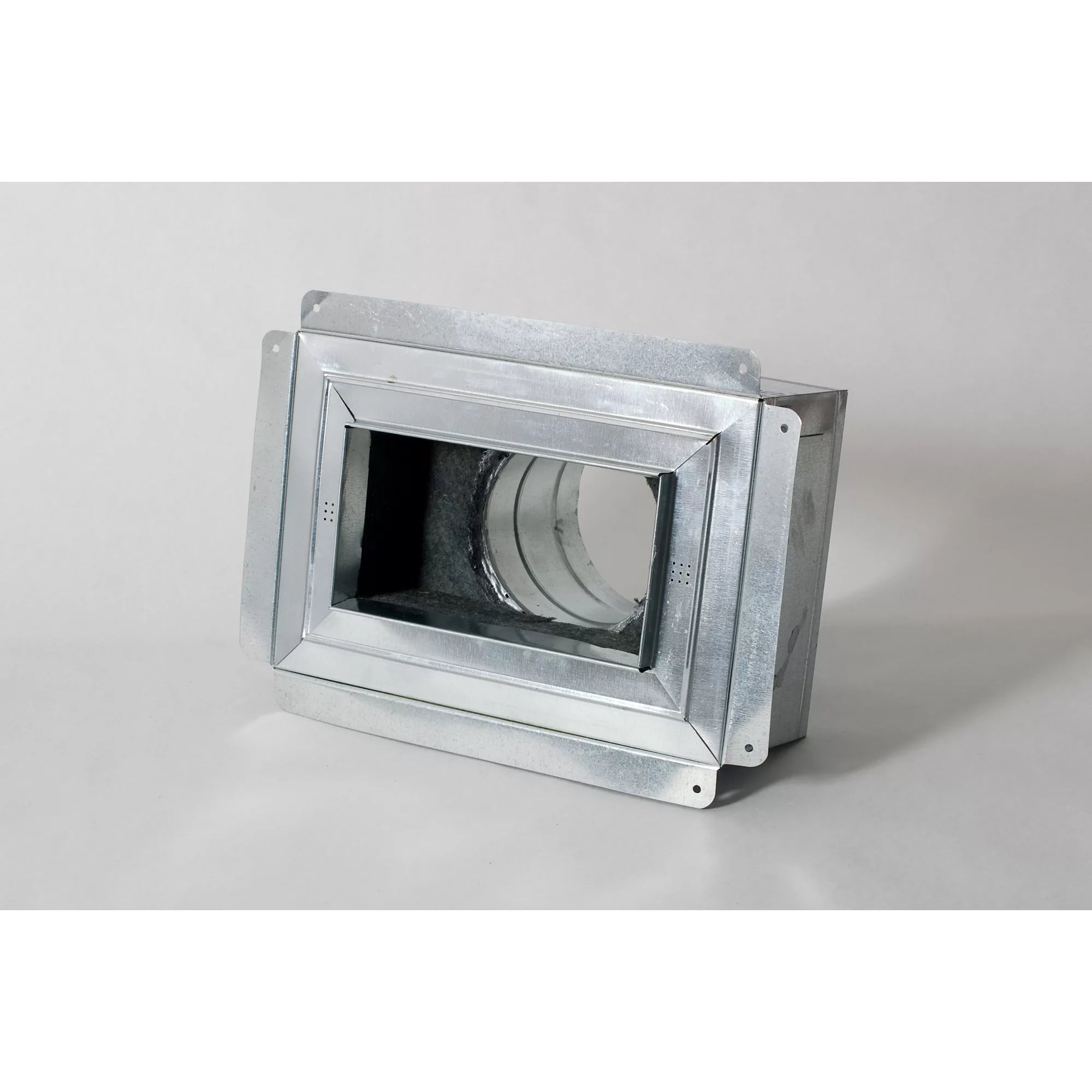

Miami Tech R6MTBG120807 Metal Top Register Box R6 12 inches by 8 inches with Collar and Gasket

Product Description

The Miami Tech R6MTBG120807 is a R6 insulated metal top register box designed for efficient heating, ventilation, and air conditioning system installations. It features a sturdy metal construction with a fiberglass top, accompanied by a collar and gasket for enhanced sealing.

• Easy installation with a 1 inch perimeter flange and dual bead design for increased strength.
• Designed for safety with rounded corners and a drywall lip to prevent injuries during handling.
• Effectively minimizes microbial growth with an anti-microbial coated black diffuser board.

Product Highlights

This register box is designed to accommodate slight size variations in HVAC components thanks to its 1/4 inch oversized opening, ensuring a snug fit for air registers and grilles. The installation process is simplified with pre-installed collar and air-tight sealing using hot melt glue.

Product Information

Standard Information

• Brand: Miami Tech
• MPN: R6MTBG120807

Technical Specifications

• Size: 12 inches by 8 inches
• Gauge: 30 GA
• Width: 14.5 inches
• Height: 10.5 inches
• Length: 7.5 inches
• Weight: 3.45 lbs
• Insulated: Yes, R6 value
• Galvanized: Yes
• Material Composition: Steel, Fiberglass
• Flanged: Yes
