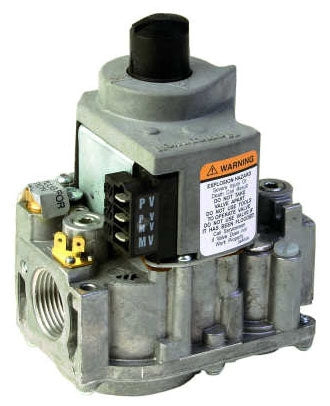

Metropac VR8345M4302 gas valve 24v 3/4 inches x 3/4 inches

Product Description

The METROPAC VR8345M4302 is a universal electronic ignition combination gas control valve designed for 24 Vac gas-fired appliances. This 1-stage, straight-through gas valve supports direct spark, hot surface, or intermittent pilot ignition systems. It handles gas media with a flow capacity of 30 to 415 CFH and operates within a temperature range of -40 to 175 Deg F, making it suitable for residential gas fired appliance applications.

• Includes two 3/4 Inch x 1/2 Inch reducer bushings for versatile installation.
• Features a natural to liquid propane conversion kit for fuel flexibility.
• All adjustments, wiring connections, and pilot outlet are accessible from the top of the control.

Product Highlights

Universal electronic gas valve for 24 Vac systems, offering flexible ignition options and easy installation with included accessories.

Product Information

Standard Information

• Brand: METROPAC
• Manufacturer Part Number: VR8345M4302

Technical Specifications

• Product Type: Gas Valve
• Valve Type: Universal Electronic/Direct/Intermittent Pilot Operated, 1-Stage, Straight-Through
• Port Connection: 3/4 Inch Compression x 3/4 Inch Compression
• Input Voltage: 24 Volt AC at 50/60 Hertz
• Operating Temperature: -40 to 175 Deg F
• Max Pressure: 1/2 PSI
• Mounting Orientation: 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
• Media Type: Gas
• Application: Residential Gas Fired Appliance
• Certifications: UL, CSA
• Pressure Regulator Setting: 3.5 Inch WC
• Pressure Tap Size: 1/8 Inch Threaded with Plug
• Flow Capacity: 30 to 415 CFH
• Electrical Connection Type: 1/4 Inch Quick Connect Male Terminal
