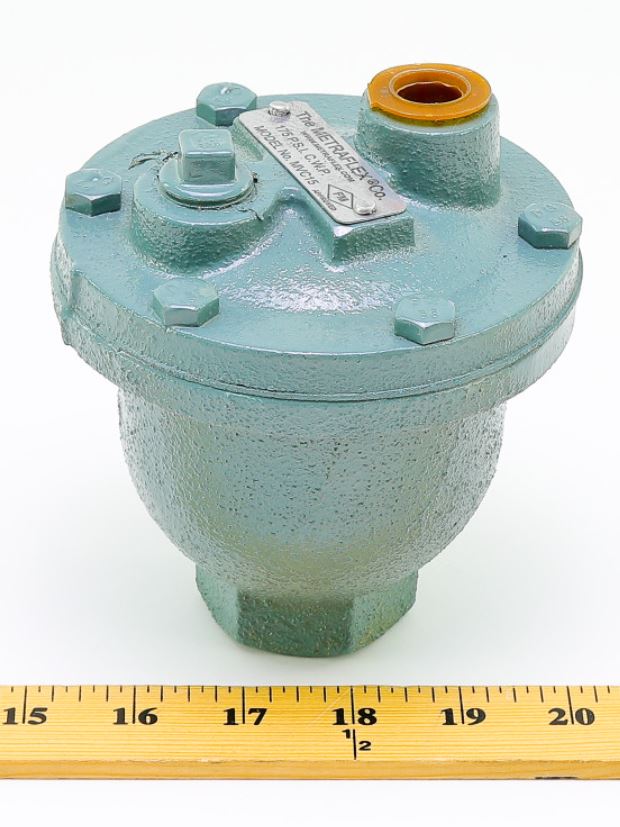

Metraflex MVC150075 Air Vent 3/4 inchesIN,1/2 inchesOUT

Product Description

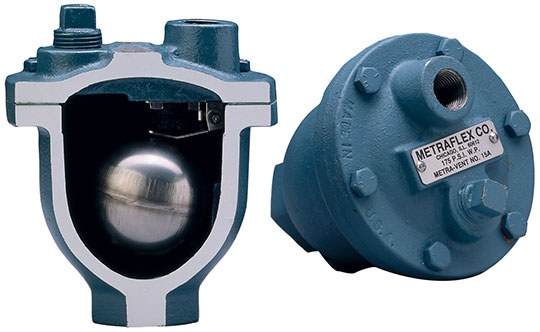

The METRAFLEX MVC150075 is an air vent with 3/4" inlet and 1/2" outlet. This automatic air vent meets the NFPA 13 requirement for venting air in a wet pipe system. Mounted at high points within fire sprinkler piping systems, it removes air pockets, reducing corrosion activity. It is an economical and efficient way to remove air from your fire sprinkler piping system.

• FM Approved automatic air vent
• Meets NFPA 13 8.1.5 (2019) Requirements for venting air in a wet fire sprinkler system
• Engineered for maintenance-free, trouble-free operation

Product Highlights

The Metraflex MVC150075 air vent provides an inexpensive and positive method to remove air in the system, helping to reduce corrosion activity.

Product Information

Standard Information

• Brand: METRAFLEX
• Manufacturer Part Number: MVC150075

Technical Specifications

• Manufacturer: Metraflex
• Manufacturer Part Number: MVC150075
• Parts Town #: MTFXMVC150075
• Units: Each
• Type: Automatic
• Nominal Size: 3/4 in
• End Style: FNPT
• Material: Cast Iron
• Connection Type: NPT
• Brand: Metraflex®
• MAX TEMP: 250 F
• INLET SIZE: 3/4″ NPT
• OUTLET SIZE: 1/2″ NPT
• ORIFICE SIZE: 1/16″
