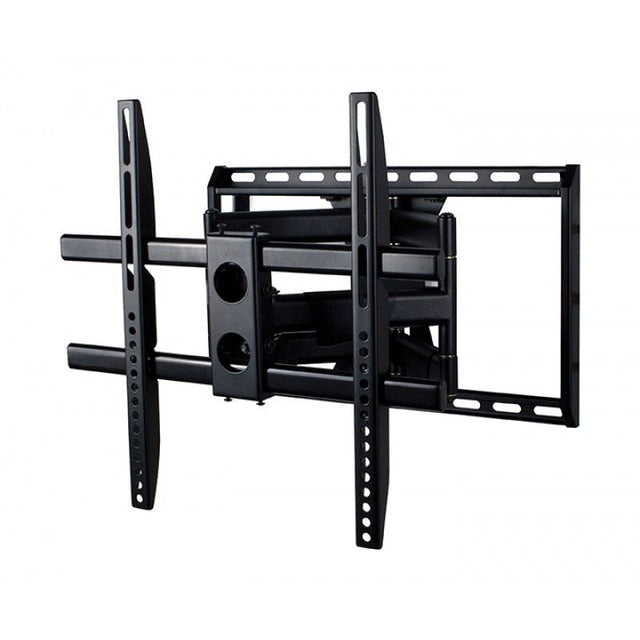

Metra fm3242 Full Motion Tv Wall Mount 32 to 42 Inch

Product Description

The METRA fm3242 is a full motion LCD television wall mount designed for screens sized 32 inches to 42 inches. Built from steel and finished in black, it uses a dual-arm design that allows the display to extend, tilt, and swivel for flexible viewing angles. The mount supports up to 77 pounds and is VESA-compliant across multiple hole patterns including 200x200, 200x400, 400x300, and 400x400 millimeters. AV installers and electricians use this bracket in both residential and light commercial settings where a fixed mount is not sufficient and adjustable positioning is required.

The fm3242 is suited for flat-panel LCD displays installed in living rooms, waiting rooms, conference rooms, and similar spaces. The dual-arm extension design allows the screen to be pulled away from the wall and repositioned without removing the mount. The swivel range of plus or minus 45 degrees and a tilt range of plus 5 degrees to minus 15 degrees accommodate varied seating layouts and wall positions. Extension travel runs from approximately 2.4 inches to 16.1 inches from the wall surface.

Key Features

• Supports displays from 32 inches to 42 inches with up to 77 pounds weight capacity
• Full motion dual-arm design with 60 mm to 410 mm extension range
• Tilt adjustment: plus 5 degrees to minus 15 degrees
• Swivel adjustment: plus or minus 45 degrees
• VESA-compliant hole patterns: 200x200, 200x400, 400x300, and 400x400 mm
• Steel construction with black finish

Compatibility

Designed as an OEM-style replacement and new-installation bracket compatible with flat-panel LCD televisions sized 32 inches to 42 inches that use standard VESA mounting hole patterns of 200x200, 200x400, 400x300, or 400x400 mm.

Installation Notes

Installation should be performed by a qualified AV or low-voltage technician following the manufacturer-supplied hardware instructions. Confirm wall stud location and load-bearing capacity before mounting; lag bolts must anchor into studs or a properly rated wall anchor rated for the display weight. Power down and disconnect all cables from the television before attaching it to the arm. Do not exceed the stated 77-pound weight capacity.

Technical Specifications

• Supported Display Size: 32 to 42 inches
• Weight Capacity: 77 pounds
• VESA Compatibility: 200x200, 200x400, 400x300, 400x400 mm
• Tilt Range: +5 degrees / -15 degrees
• Swivel Range: +/- 45 degrees
• Extension Range: 60 to 410 mm
• Material: Steel
• Color: Black

Standard Information

• Brand: METRA
• Manufacturer Part Number: fm3242
