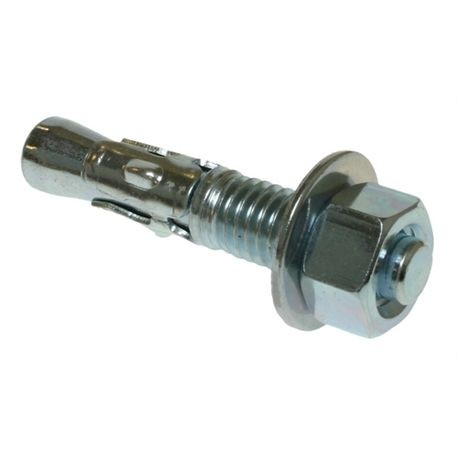

Metallics JTS3234 Stud/Wedge Anchor 3/8 in Dia 2-3/4 in OAL 1-1/8 in L Thread

Product Description

The Metallics JTS3234 Stud/Wedge Anchor is designed for secure fastening in concrete applications. This product is made by Metallics and has the MPN JTS3234. The anchor features a diameter of three eighths of an inch with an overall length of two and three fourths inches and a thread length of one and one eighth inches.

• Eliminates drilling oversized holes
• A powerful product when strength is needed
• Pitch range from 0.3237 to 0.3331 inches

Product Highlights

This anchor provides reliable strength and is ideal for use in concrete applications, ensuring secure installations without the need for oversized holes.

Product Information

Standard Information

• Brand: Metallics
• Manufacturer: Metallics

Technical Specifications

• Finish: Zinc Chromate
• Drill Size: 3/8 in
• Minimum Embedment Depth: 1-1/2 in
• Material: Steel
• Shear Strength: 4100 psi
• Tensile Strength: 3600 psi
• Thread Length: 1-1/8 in
• Overall Length: 2-3/4 in
