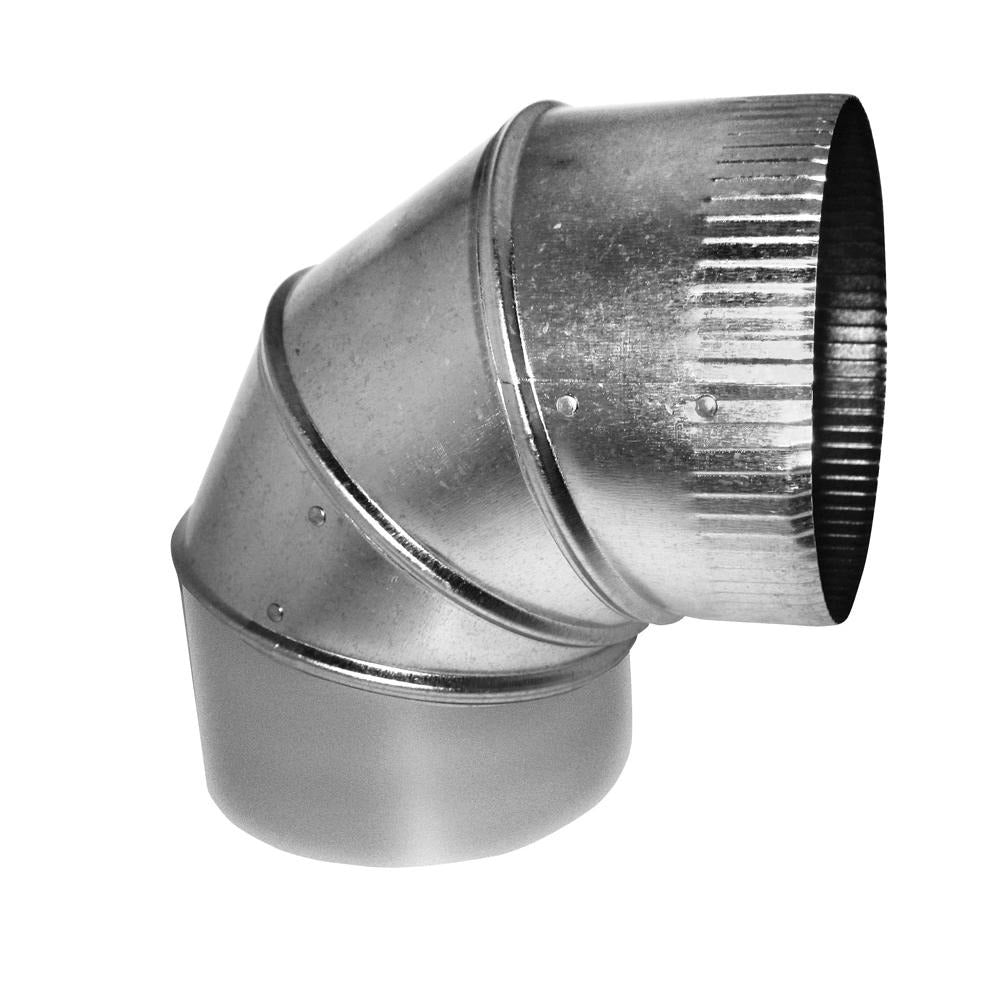

Metalcraft 90626 Adjustable Elbow 90 Deg 6 in 26 Ga

Product Description

The METALCRAFT 90626 is a 90-degree adjustable elbow fitting used in sheet metal ductwork systems for residential and light commercial HVAC applications. Fabricated from 26-gauge hot-dipped galvanized steel, this elbow provides a rigid, corrosion-resistant connection at right-angle transitions in supply and return air distribution systems. At 6 inches in diameter, it fits standard round duct runs and can be adjusted to fine-tune the angle during installation. HVAC sheet metal technicians and mechanical contractors install this fitting as part of trunk-and-branch or radial duct systems.

This elbow is suited for forced-air heating and cooling duct installations where a 90-degree directional change is required. The hot-dipped galvanized finish protects against moisture and corrosion in attic, crawlspace, basement, and mechanical room environments. Its adjustable design allows the installer to set the precise sweep angle on the job without cutting or fabricating a custom fitting, reducing labor time in tight or irregular framing conditions.

Key Features

• 90-degree adjustable elbow for right-angle duct transitions
• 6-inch fitting size for standard round duct connections
• 26-gauge steel construction for rigid, durable performance
• Hot-dipped galvanized finish resists corrosion and moisture
• Adjustable angle simplifies installation in confined spaces

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 6-inch round ductwork systems in residential and light commercial forced-air HVAC applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal mechanic in accordance with SMACNA duct construction standards and applicable local mechanical codes. Power down the air handling unit before making duct connections. Secure the elbow to adjoining duct sections using sheet metal screws and seal all joints with UL 181-listed mastic or foil tape to maintain system pressure and efficiency. Do not overtighten fasteners on 26-gauge material, as the gauge is susceptible to deformation at connection points.

Technical Specifications

• Series: 90 Series
• Angle: 90 degrees
• Fitting Size: 6 inches
• Gauge: 26 ga
• Material: Steel
• Finish: Hot Dipped Galvanized

Standard Information

• Brand: METALCRAFT
• Manufacturer Part Number: 90626
