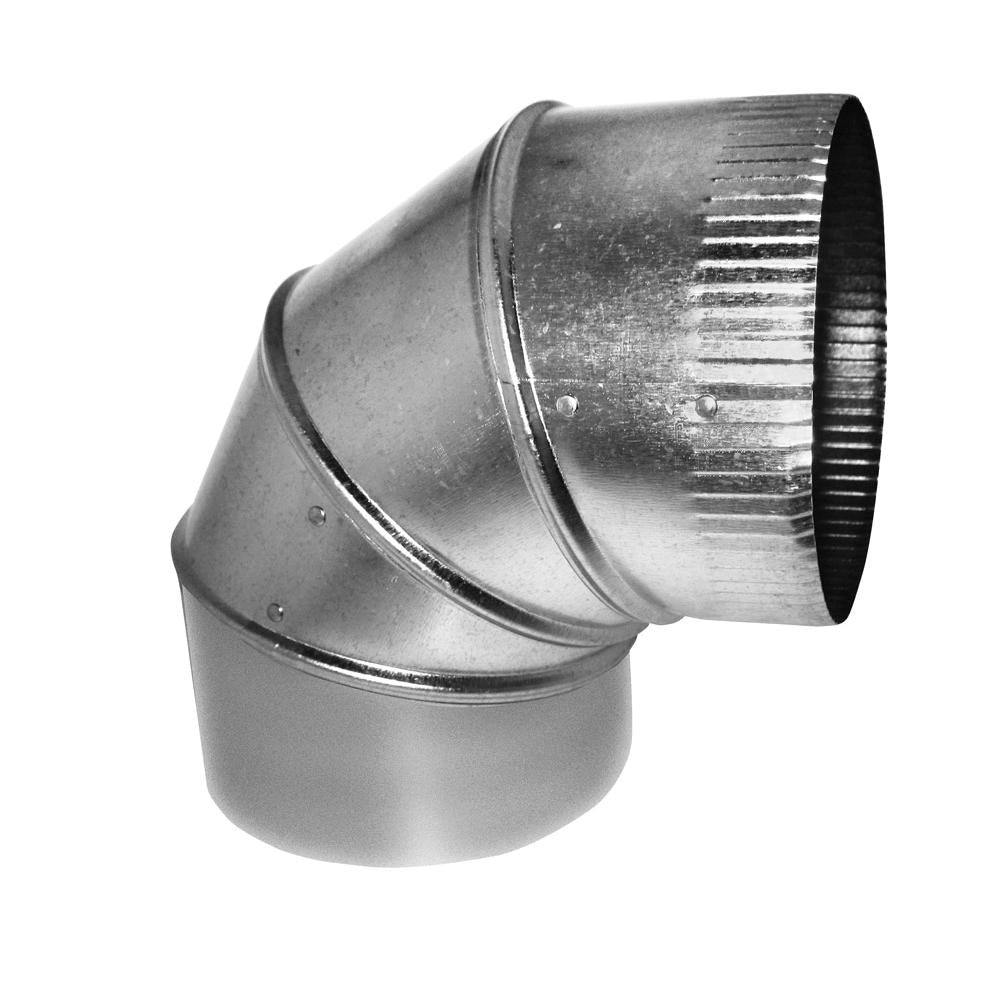

Metalcraft 901030 Adjustable Duct Elbow 90 Degree 10 Inch

Product Description

The METALCRAFT 901030 is a 90-degree adjustable duct elbow designed for use in sheet metal ductwork systems. Fabricated from 30-gauge hot-dipped galvanized steel, this fitting fits 10-inch round duct and provides a corrosion-resistant connection at right-angle transitions. It is part of the 90 Series line and is typically installed by HVAC technicians and sheet metal workers during new construction or duct system retrofits. The hot-dipped galvanized finish extends service life in both residential and light commercial applications where moisture exposure is a concern.

This elbow is suited for 10-inch round duct installations requiring a fixed 90-degree directional change. Common applications include trunk-to-branch transitions, wall penetrations, and ceiling drops in forced-air heating and cooling systems. The adjustable design accommodates alignment variations during installation, reducing the need for custom fabrication on the job site.

Key Features

• 90-degree fixed angle fits standard right-angle duct routing
• Adjustable construction accommodates minor alignment offsets without field cutting
• 30-gauge steel construction provides structural rigidity for 10-inch duct spans
• Hot-dipped galvanized finish resists corrosion in humid or unconditioned spaces
• 10-inch fitting size compatible with standard round duct and collars

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 10-inch round duct systems in residential and light commercial forced-air HVAC applications.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal workers. Power down the air handling unit and close the system before cutting into or modifying existing ductwork. Secure the elbow with sheet metal screws and seal all joints with UL 181-listed foil tape or mastic sealant per local mechanical code requirements. Avoid over-crimping the fitting collar, as deformation on 30-gauge material can affect airflow and joint integrity.

Technical Specifications

• Series: 90 Series
• Angle: 90 degrees
• Fitting Size: 10 inches
• Gauge: 30 ga
• Material: Steel
• Finish: Hot Dipped Galvanized

Standard Information

• Brand: METALCRAFT
• Manufacturer Part Number: 901030
