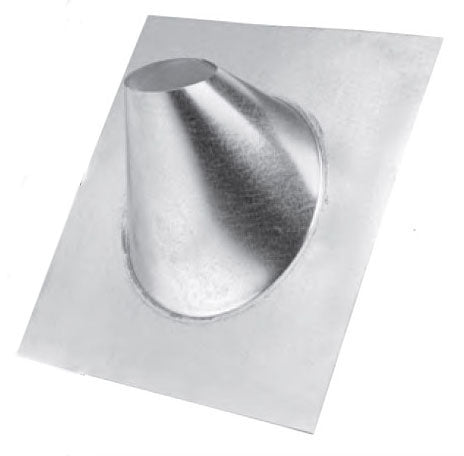

Metal-Fab 6MF-12 Cone Base High Pitch Roof Flashing 6 Inch

Product Description

The Metal-Fab 6MF-12 is a cone base high pitch roof flashing designed for B-Vent applications. This flashing supports roof pitches ranging from six over twelve to twelve over twelve. It is constructed with a 0.012-inch aluminum alloy flue and a 0.018-inch G90 galvanized steel casing, ensuring durability and reliability.

• Type B Gas vent for high pitch applications
• Overall base dimensions of twenty-one inches length by twenty-eight inches width
• UL 441 and NFPA 54/211 standards compliant

Product Highlights

This product provides essential protection for gas appliances such as boilers, fireplaces, and furnaces. The twist-lock connection simplifies installation, eliminating the need for sheet metal screws. The innovative design ensures effective venting for natural gas or propane-fired appliances.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 6MF-12

Technical Specifications

• Flue Diameter: 6 inches
• Base Size: 21 inches length x 28 inches width
• Cone Base Size: 12.5 inches
• Height: 4 inches
• Material: Aluminum Alloy and G90 Galvanized Steel
• Material Thickness: 0.012 inches (inner wall), 0.018 inches (outer wall)
• Pitch Range: 6/12 to 12/12
• Applicable Standards: UL 441, NFPA 54, NFPA 211
