METAL-FAB 8TGS24 METAL-FAB Temp Guard 8 x 24 Stainless Steel

Product Description

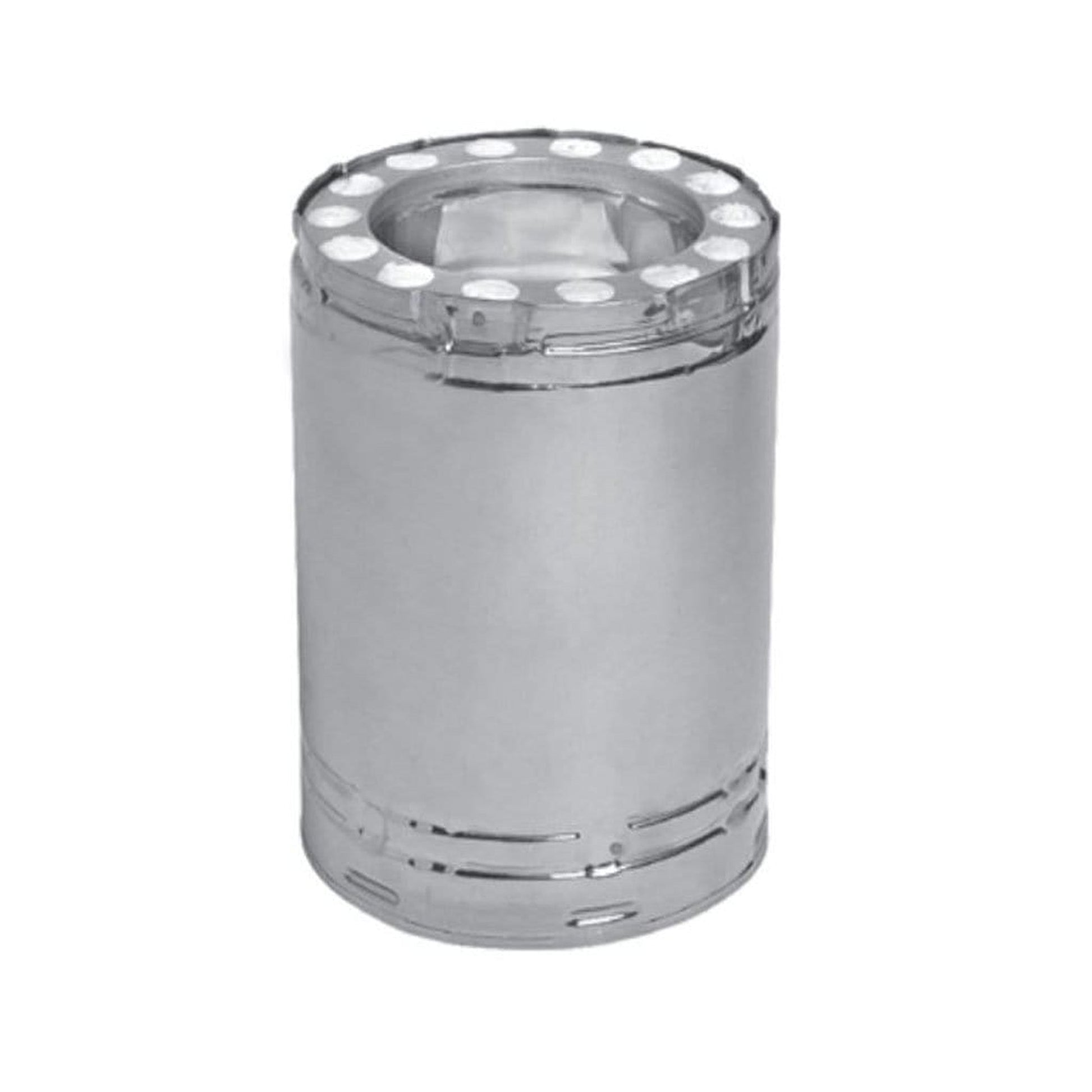

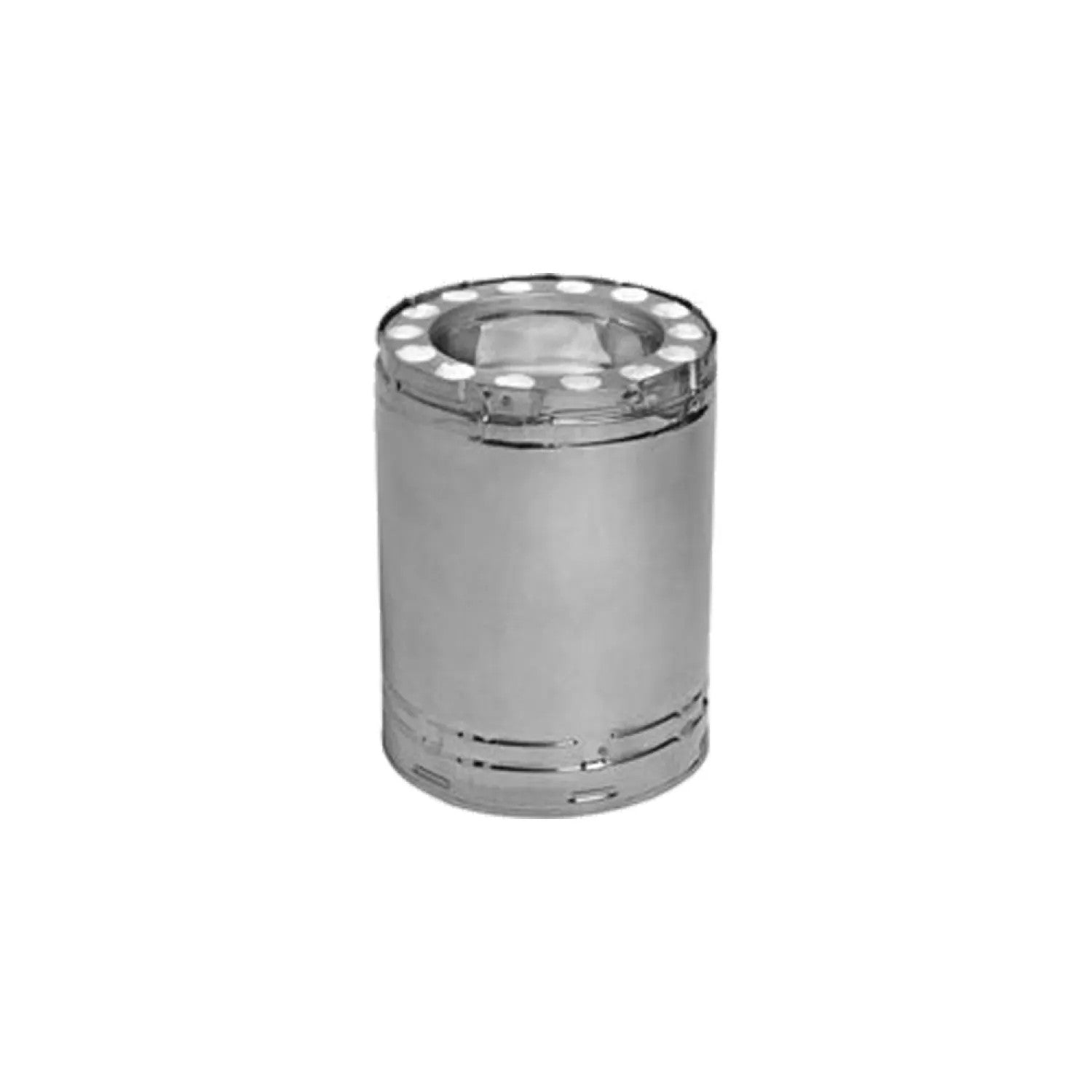

The METAL-FAB Temp Guard 8TGS24 is a reliable double-wall insulated chimney pipe for residential and commercial heating appliances that use wood, oil, coal, or gas. This chimney pipe features a twist-lock connection for easy and secure assembly. Constructed with a stainless steel inner flue, it ensures durability and efficient performance, while the outer casing is available in stainless steel or galvanized material. The inner diameter measures eight inches, and the length is twenty-four inches.

• Suitable for various heating applications
• Twist-lock design for effortless assembly
• Maximum temperature tolerance of 1000 degrees Fahrenheit

Product Highlights

This chimney pipe is tested and listed under UL 103HT and NFPA 211, ensuring compliance with safety standards. It utilizes ceramic fiber insulation, which helps maintain consistent temperatures for flue gases.

Product Information

Standard Information

• Manufacturer: Metal-Fab
• Type: Chimney Pipe

Technical Specifications

• MPN: 8TGS24
• Construction: Double Wall, Insulated
• Material: Stainless Steel
• Inner Diameter: 8 inches
• Length: 24 inches
• Listings/Standards: NFPA 211, UL 103HT
• Flue Material: 0.015, 430 Stainless Steel
• Casing Material: 0.015, 430 Stainless Steel
• Outer Diameter: 11 inches
• Clearances: 1-1/2 Minimum clearance to combustibles
